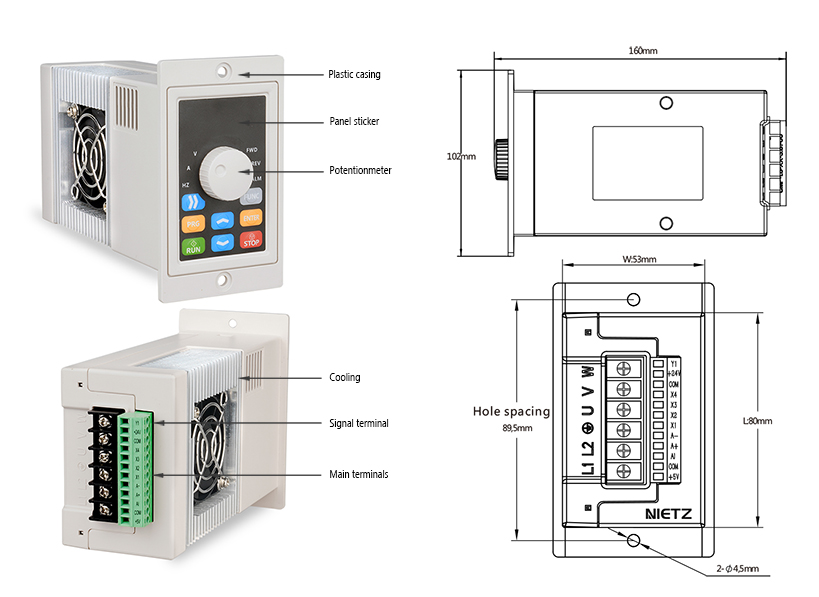

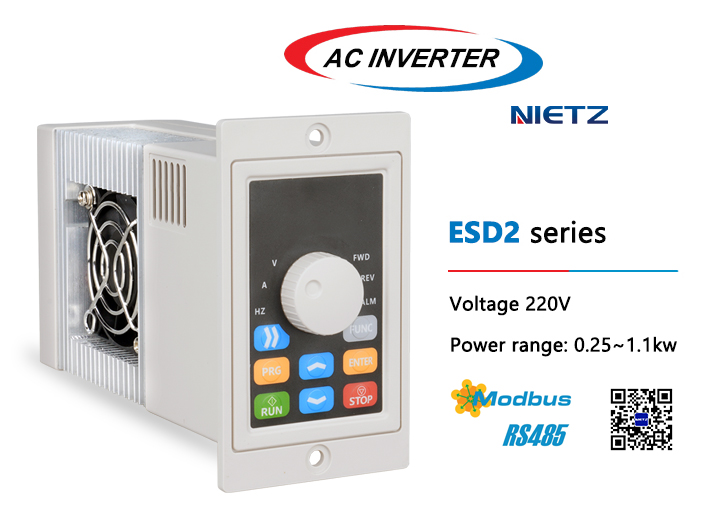

ESD2
Series frequency inverter is a new generation micro power variable
speed drive, specially designed for small power motor. Micro dimension,
save installation space, instrument embedded structure, installation is
simple and compact.
FEATURES AND ADVANTAGE:
Power range: 0.2~1.1 kW / 220V; V / F type control
Input / output: single / three phase
Output frequency range 0-300 Hz, analog input 0-5 V;
Carrier frequency up to 38.4 kHz
Built-in MODBUS RS485 communication, baud rate up to 9600 bps
Forced air cooling
Potentiometer knob to convenient adjust to speed regulation, optimized structure, forced air cooling
Adopt a new generation I P M module with complete protection functions
| TECHNICAL DATA |
| VFD power(kw) | acity of power supply(kVA) | Input current(A) | Output currant(A) | daption motor(kW) |
| ESD2-0R2G1, 0.2 | 3 | 2.3 | 1.6 | 0.2 |
| ESD2-0R4G1, 0.4 | 3.8 | 3.2 | 2.1 | 0.4 |
| ESD2-0R7G1, 0.75 | 5.6 | 4 | 3.7 | 0.75 |
| ESD2-1R1G1, 1.1 | 9.9 | 8.3 | 5.5 | 1.1 |
APPLICATION:
Suitable for electronic equipment, wood cutting machine, conveyer belt, textiles, wire drawing machine, etc.
