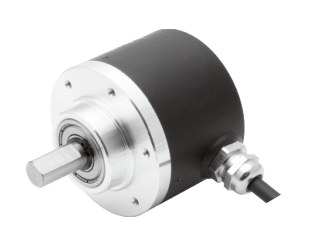

HDR series

The HDR series exhibits excellent resistance to mechanical damage and can withstand high axial and radial loads, meeting the needs of various industrial field applications and different host computer applications.

High Light

Die-cast metal casing, sturdy and not easily damaged.

Polymer grating

Pulse rate max up to 10 000 P/R

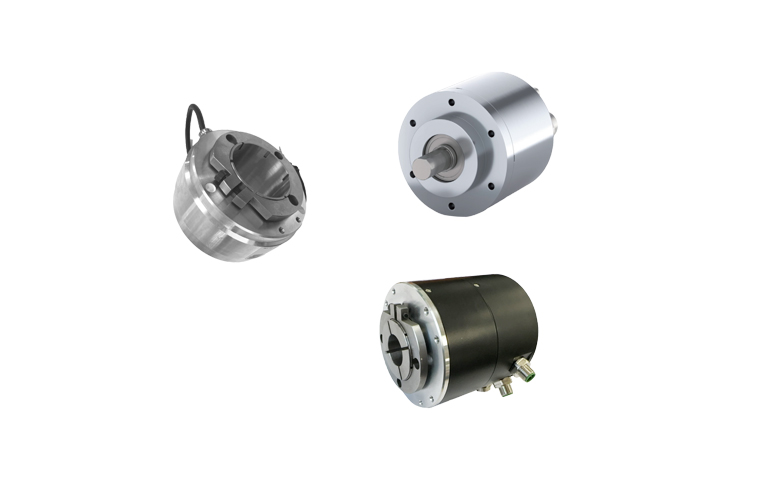

HD58N series

The HD58N series products feature a dual-bearing structure design, and the metal housing provides excellent resistance to mechanical damage, making them suitable for a wide range of industry applications. The products utilize a stainless steel through-hole shaft design with a maximum shaft diameter of 15 mm, capable of withstanding high radial and axial loads to meet the needs of various industry applications. The products employ a wide voltage range power supply design, featuring reverse connection protection and short-circuit protection, effectively reducing the impact of incorrect wiring during installation on the encoder.

High Light

φ8…φ15mm Wide range of shaft diameters to suit various field application needs

Equipped with reverse connection protection and short circuit protection to ensure safe use.

Pulse rate max up to 10 000 P/R
