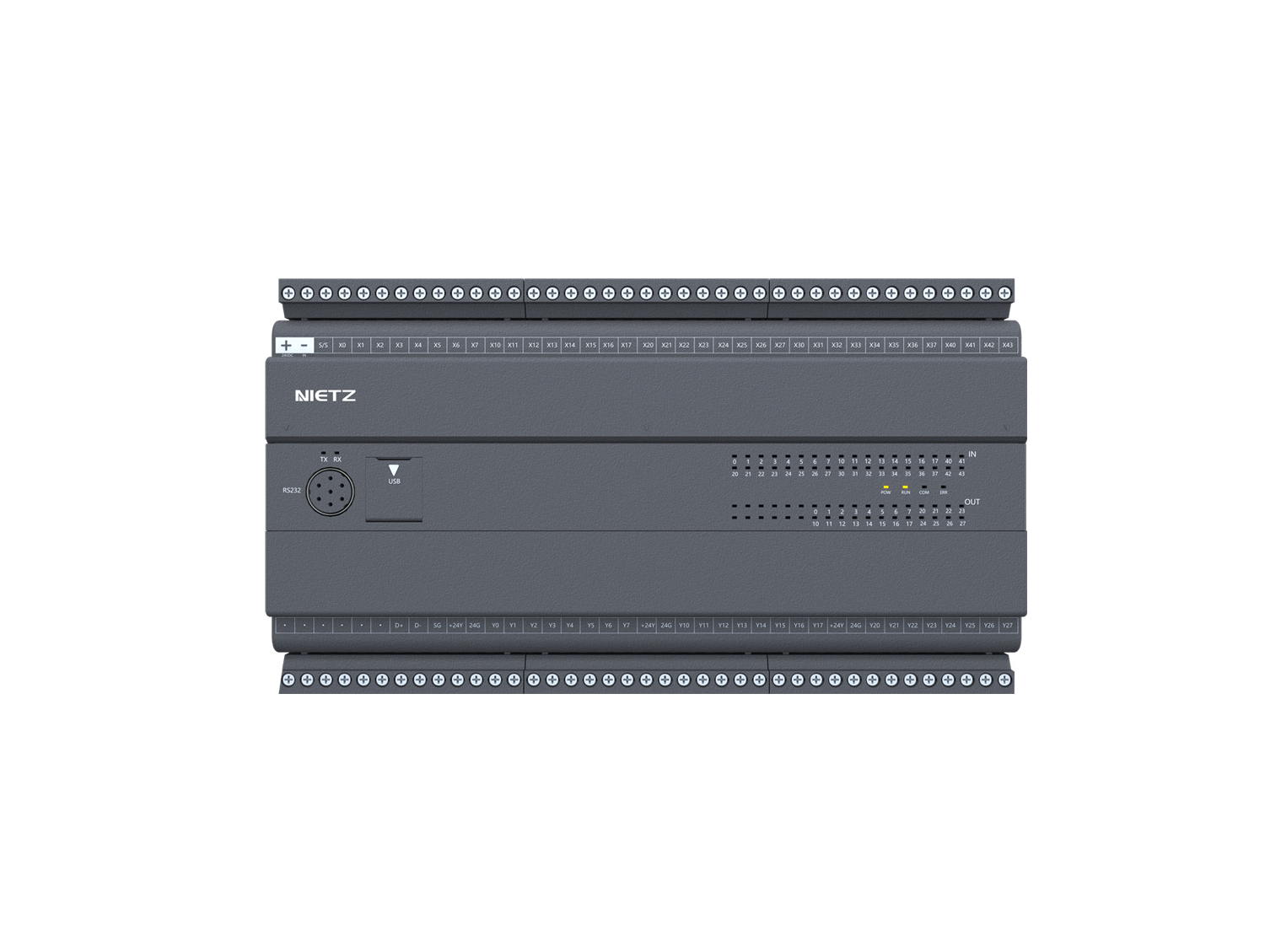

ZX100 Series PLC & IO Modules

The ZX100‑series is a general‑purpose PLC with main unit I‑O points ranging from 16 to 68. It can be fitted with a wide range of expansion modules for a maximum I‑O capacity of 256 inputs / 256 outputs. With reliable performance, it is suitable for a variety of application scenarios. It supports high‑speed pulse input and output, is equipped with dual communication ports RS232 and RS485, complies with Modbus ASCII and Modbus RTU protocols, and allows mixed programming in C language, Ladder Diagram and SFC.

info@nietz.cn +86 13764513349 Inquiry

Features

Features:

◆ 2‑6 channels of 200 kHz high‑speed pulse input and 1‑3 channels of A‑B phase high‑speed input

◆ 2‑12 channels of 200 kHz high‑speed pulse output

◆ Dual RS232 & RS485 communication ports, both supporting Modbus ASCII and Modbus RTU

◆ 60 K program memory

◆ Program encryption; program download and monitoring via USB flash drive or double‑ended USB cable for faster communication, download speed up to 12 Mbps

◆ Flash‑based data retention on power‑failure, no battery backup required

◆ Up to 16 digital and analogue expansion modules connectable, expandable to 256 isolated inputs / 256 isolated outputs

◆ Mixed‑language programming: C language, Ladder Diagram, SFC
