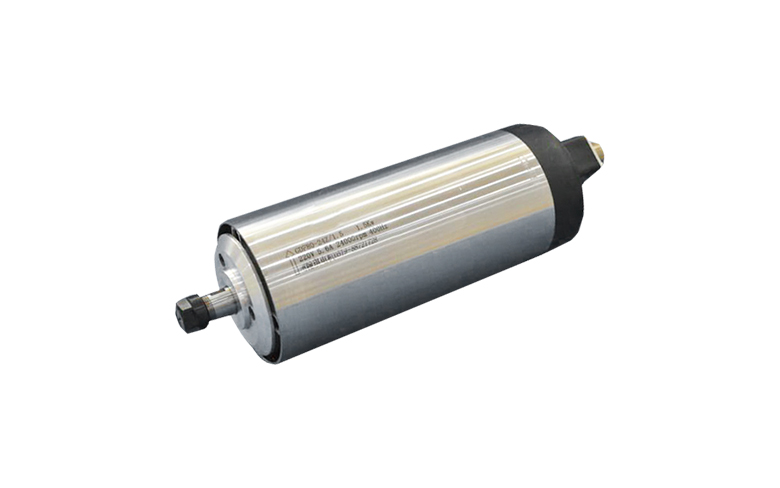

Motorized spindle motor has the advantages of compact structure, light weight, small inertia, small vibration, low noise, quick response and so on. Its high rotary speed and big power facilitate lathe design and spindle positioning, thus becoming a ideal structure in high speed spindle unit.


Features

Axletree of the motorized spindle motor use high-speed axletree technology, have better performance in anti-friction and anti-heat, service life is several times longer than traditional axletree.

High rotary speed and precision, low noise, structure of inner circle with lock more suitable for spray and lubrication.

Characteristics:

  • Motorized spindle motor deletes pulley/gear transmission, achieving lathe’s “zero-transmission”, thus improving its efficiency and decrease labour cost.

  • Motorized spindle motor has good rigidity with high rotary accuracy and quick response, can achieve very high rotary speed, increase/decrease speed and allow quick-stop in your required angle with wide speed-adjusting range.

  • Constant power when in high speed, constant torque when in low speed.

  • Compact structure and light weight can reduce cost.

Specifications
Technical parameter
Spindle typeSpeed(rpm)Power (kw)Voltage (V)ColletCollet(mm)Weight(kg)Cooling typeSize (mm)Bearings
SMC65F-800(for  wood)240000.8220ER113.175-63air cooling654
SMC80F-1.5(for  wood)240001.5220ER113.175-64.4air cooling803
SMC80F-2.2  (ER16)240002.2220ER163.175-64.5air cooling804
SMC80F-2.2  (ER20)240002.2220ER203.175-64.5air cooling804
SMC93*82-1.5kw180001.5220vER203.175-12.76air cooling93X824
SMC93*82-2.2kw180002.2220vER253.175-12.78air cooling93X824
SMC93*82-3.5kw180003.5380/220ER253.175-12.79air cooling93X824
SMC120*103-4.5kw180004.5380/220ER323.175-1613air cooling120X1034
SMC120*103-6kw180006380/220ER323.175-1615air cooling120X1034
SMC120*103-7.5kw180007.5380ER323.175-1618air cooling120X1034
SMC170*150-12kw1800012380ER403.175-2528air cooling170X1504
SMC80*73-1.5with  flange240001.5380/220ER113.175-66air cooling80x734
SMC80*73-2.2with  flange240002.2380/220ER203.175-12.77air cooling80x734
SMC105*102-3with  flange180003380/220ER203.175-12.712air cooling105x1024
SMC120*103-4.5with  flange180004.5380/220ER323.175-1613air cooling120x1034
SMC120*103-5with  flange180005380/220ER323.175-1615air cooling120x1034
SMC120X103-6with  flange180006380/220ER323.175-1616air cooling120x1034
SMC143*130-8(9)ATC180008(9)220/380ISO303.175-2535air cooling 4
