| Sepecification |

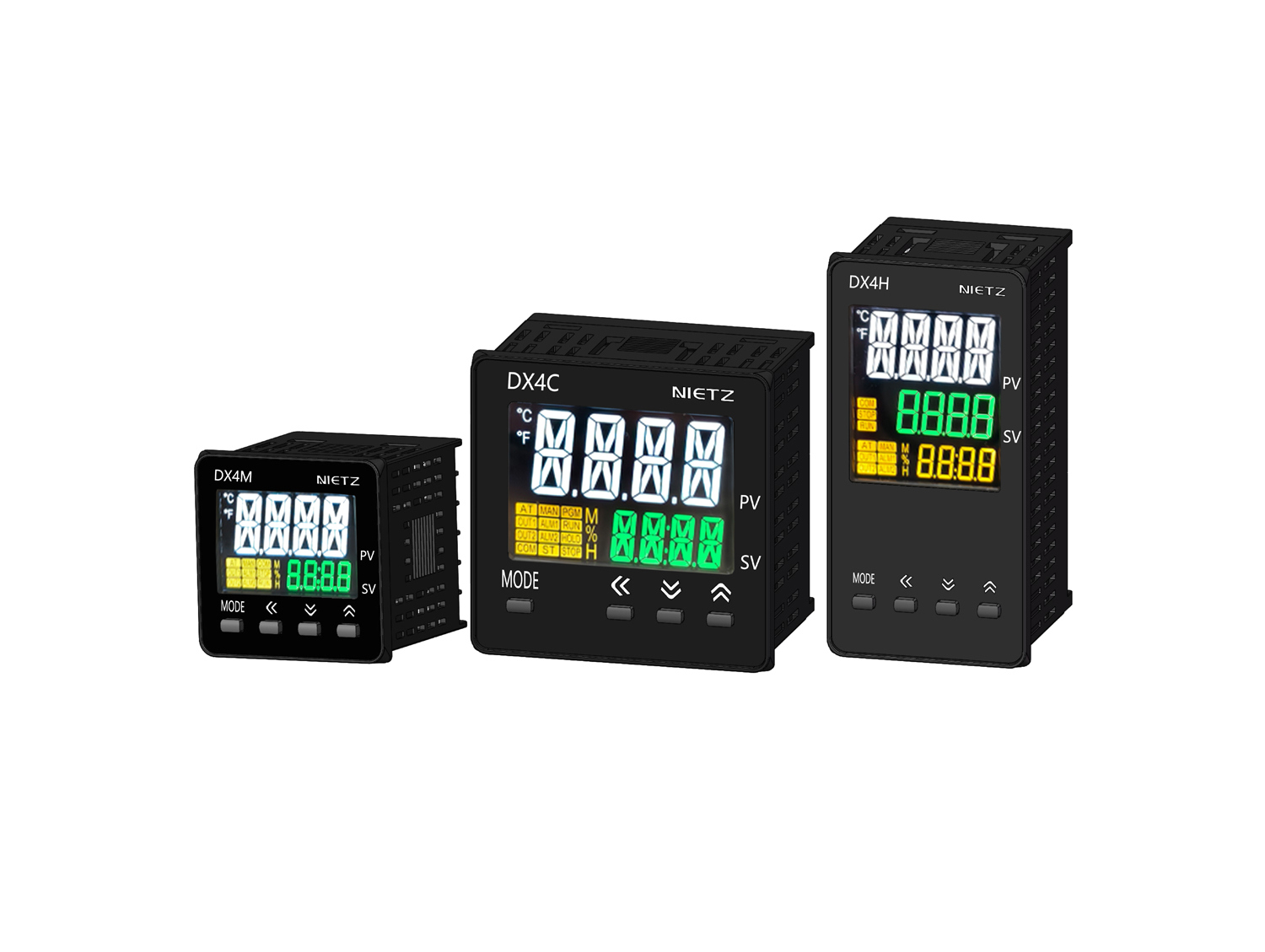

| Series | DX4M | DX4C | DX4H |
| Power suuply | AC Power | 100-240VAC~50/60Hz |
| AC/DC Power | 24VAC~50/60Hz, 24-48VDC |
| Allowable voltage range | 90 to 110% of rated voltage |
| Power consumption | AC Power | Max. 8VA |
| Display method | 11 segment (PV: white, SV: green), other display part(yellow) LCD method |
| Character size | PV(W×H) | 7.2×14.0mm | 10.7×17.3mm | 7.2×15.8mm |
| SV(W×H) | 3.9×7.56mm | 6.8×11.0mm | 6.2×13.7mm |
| Input type | RTD | DIN Pt100Ω, Cu50Ω (Allowable line resistance max.5Ω per a wire) |
| TC | K(CA), J(IC), L(IC), T(CC), R(PR), S(PR) |
| Reveal precision *2 | Thermal resistance | - Normal temperature(23℃ ± 5℃): (PV ± 0.3% or ±1℃, select the higher one) ± 1 digit
- Ambient temeperature range: (PV ± 0.5% or ±2℃, select the higher one)± 1 digit |
| Thermal couple |
| Control output | Relay | 250VAC~3A; 30VDC~3A, 1a |
| SSR | 12VDC~ ±2V 20mA below | 13VDC~ ±3V 20mA below |
| Electric current | DC 4-20mA ( load impedance below 500 Ω) |
| Option output | Alarm output | AL 1, AL2 Relay: 250VAC~ 32A 1a |
| Transfer output | DC 4-20mA ( load impedance below 500 Ω, output accuracy: ± 0.3% F.S ) |
| Communication output | Modbus RS485 |
| Control method | ON/OFF control, P, PI, PD, PID controls |
| Regulating sensitivity | 1 to 100℃/℉ (0.1 to 50.0℃/℉) changeable |
| Proportional band(P) | 0.1 to 999.9℃/℉ |
| Integral time(I) | 0 to 9999 sec. |
| Derivative time(D) | 0 to 9999 sec. |
| Control period(T) | 0.5 to 120.0 sec. |
| Manual reset | 0.0 to 100.0% |
| Sampling period | 50ms |
| Withstand voltage | 3000 VAC 50/60Hz 60s (between 1st side and 2and side) |
| Vibration resistance | 5~55Hz (period 60s) amplitude 0 745mm, X Y Z all direction, two hours |
| Relay life span | Mechanical | OUT: AL1/2: Over 500 more than ten thousand times |
| Electrical | OUT: AL 1/2: Over 20 more than ten thousand times (250VAC 3A resistive load) |
| Insulation resistance | Min. 100MΩ(at 500VDC megger) |
| Anti-interference | Square wave interference generated by interference simulator 1 µs) ±2KV R phase, S phase |
| Outage compensation | Approx. 10 years (non-volatile semiconductor storage) |
| Environment | Ambient temp. | -10 to 50℃, Shotage: -20 to 60℃ |
| Ambient humi. | 35 to 85%RH, Shotage: 35 to 85%RH |
| Protecdtion Class | IP50 (Front part, IEC sepcification) |
|
|
| Insulation type | Double insulation or reinforced insulation (symbol: back, between the 1 st and 2 nd sides and withstand voltage: 3 kV) |
| Weight | Approx. 146g (approx. 85.7g) | Approx. 233g (approx. 143g) | Approx. 214g (approx. 133g) |
