ESM-60 Intelligent Soft Starter on-line
ESM-60 Intelligent Soft Starter on-line
ESM60 1
ESM60 2

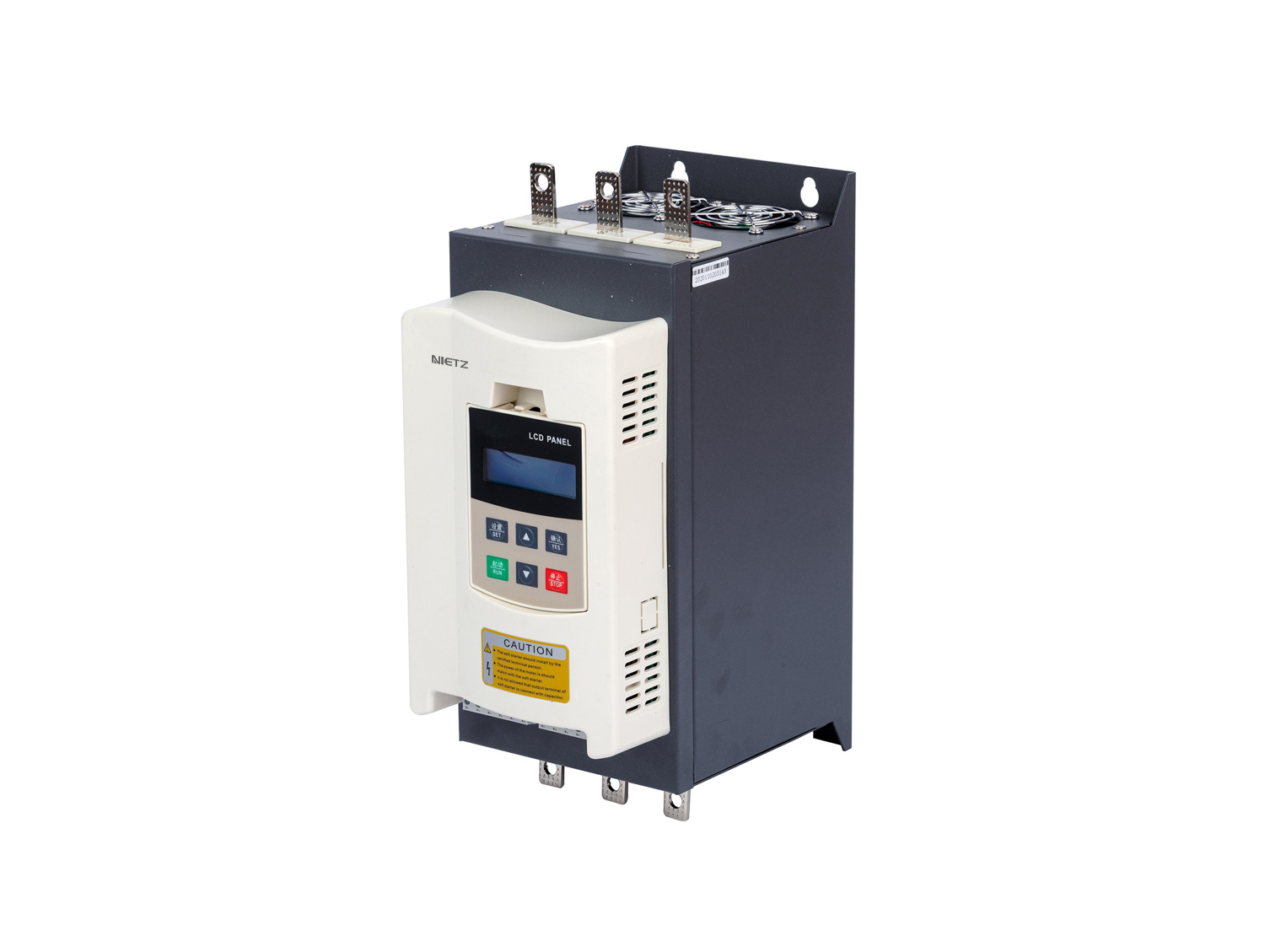

ESM-60 Intelligent Soft Starter on-line

The ESM-60 Intelligent Soft Starter on-line is the latest generation online soft starter, developed using power electronics, microprocessor technology, and modern control theory. It is designed to effectively limit motor starting voltage and is an ideal replacement for traditional step-down starters (star-delta, auto-transformer, magnetic control). It eliminates the need for a bypass contactor, significantly reducing user costs.

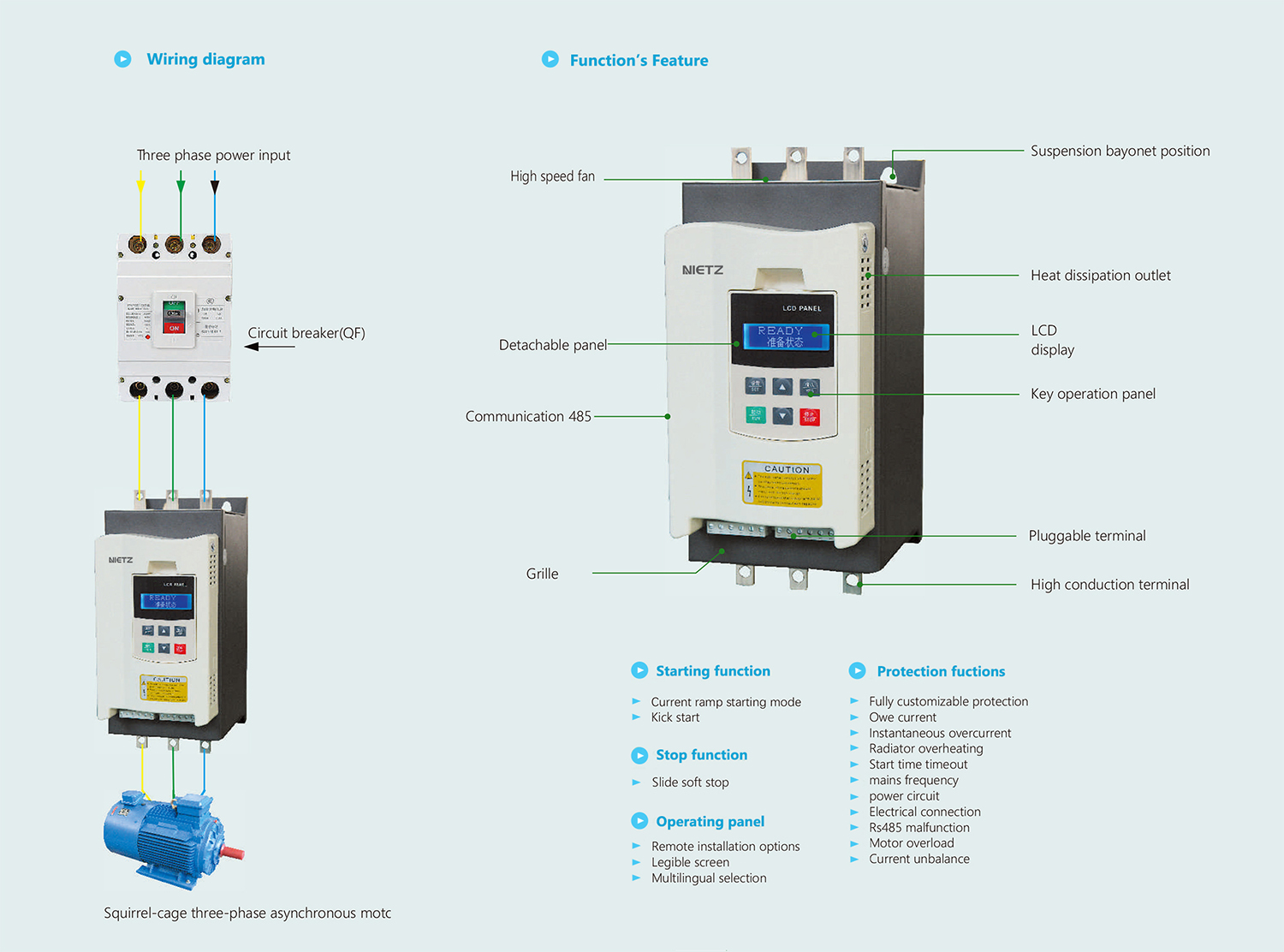

Features

Intelligent Motor Start Control

The ESM-60 will be the control of your engine, you can choose the best soft start adjusted to your application as it comes with dual closed loop and ignition current ramp, allowing demanding applications to be very precise.

Easy Installation

The ESM-60 will allow you to save around 70% on panel space, it does not need Bypass contactors which reduces installation costs (cables and manpower) by approximately 30%.

Removable Panel (includes bezel and cable); Removable terminal connector

It allows easy installation of the cables as the connector is easily removable.

Innovative ventilation

High-speed fans and heat sinks that allow 360° ventilation, when the soft splitter is operating these will stop working a few minutes after the equipment is stopped, optimizing its operation.

ADVANTAGE

  • Optional parameters conveniently available for starting different engines.

  • It delivers an inspection of the motor voltage where it performs a closed loop control, the motor start ensures success in different conditions and with different loads.

  • A variety of starting forms: Voltage ramp where you can get the maximum starting torque, current limit can make great limitations on the soft starter starting current.

  • Perfect and reliable protection functions: Voltage loss, Overvoltage protection, Overheating, Extended start time, Input phase loss, Output phase loss, 3 phase imbalance, Load and overload protection circuit.

  • The model offers a communication function that includes communication between the fieldbus and the soft starter.

  • LCD display showing parameter, status and error codes.

Soft starter EMS-6(1)
