NZS Series IP65 - Pump Drives
NZS Series IP65 - Pump Drives
NZS Series IP65 - Pump Drives
NZS 2
NZS 1
NZS 3
NZS Series IP65 - Pump Drives

The NZS series IP65 frequency inverters are waterproof drives in a power range 0.4 to 110 kW suitable for mounting in wet of dirty areas without a panel. NZS IP65 can be wall mounted in dusty, dirty and damp environments, even with low pressure jets, saving panel space and cost.

Input voltage,V
Power range, кWMount type
1 / 3 phase/ 220 V
0.4 - 2.2

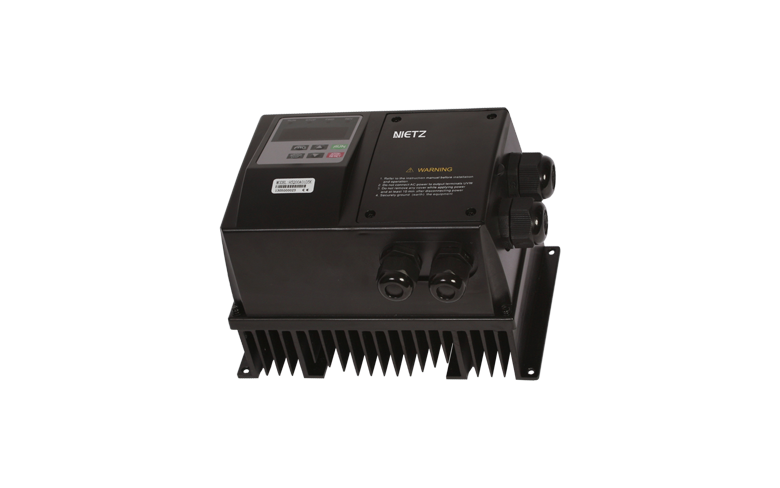

Horizontal
3 phase/ 380V~480V
0.75- 11
Horizontal

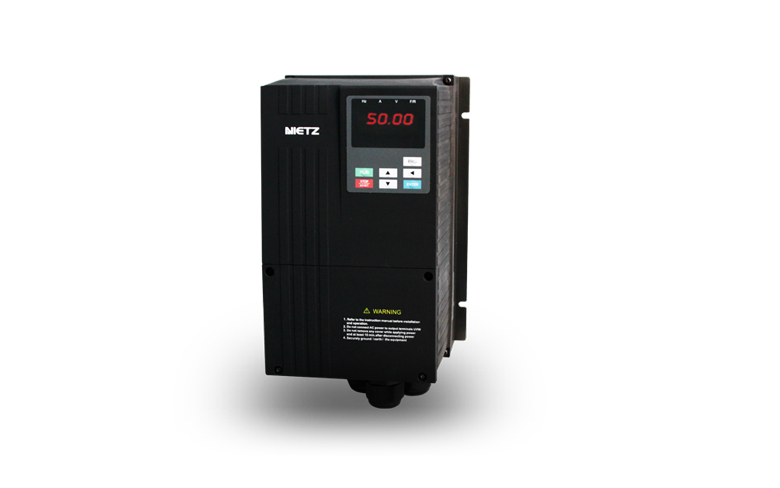

3 phase/ 380V~480V7.5- 110Vertical

  ip65-waterproof-2


Features

The NZS series IP65 frequency inverters are waterproof drives in a power range 0.4 to 7.5 kW suitable for mounting in wet of dirty areas without a panel. NZS IP65 can be wall mounted in dusty, dirty and damp environments, even with low pressure jets, saving panel space and cost. Decentralised inverters: mounted directly on the motor or to the wall.

Function:

  • The function for the main engine: Any set can be the main engine. Once the current main engine occur the breakdown ,can exchange another set to be the main engine. But the signal line of the Pressure Sensor must be moved to the new main engine accordingly .

  • The function of Adding Pump and reducing Pump: Finish the several Pump according to the Adding and Reducing.

  • With the resting state and Awaken Function.

  • With the function of exchange Pump on timely.

  • With the function of Antifreeze and waterproof.

  • With the function for exchanging the Pump automatically when occur the breakdown. Once any set of the machine appears the mistake, the system will overleap this part automatically, To be ensure the stability of the system.

  • Alarm for watering :With the alarming function for HO,LO ,LP.

Specifications
ModelSpetification
InputRated voltage,Frequency3 AC 380V / 220V; 50-60 Hz
Voltage Range380V: 330V~440V;220V:  170-240V
OutputVoltage Range380 V: 0~380 V;  220V: 0-220V
Frequency Range0.10~400.0 Hz
Control  methodV/F control, Space verctor control
IndicationOperating status/Alarm definiton/interactive guidance;eg,frequency  setting,the output frequecy/current,DC bus voltage,the temperature and so on.
Control SpecificationOutput Frequency Range0.10~400.00 Hz.
Frequency Setting ResolutionDigital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency
Output Frequency Accuracy0.01 Hz.
V/F ControlSetting V/F curve to satisfy various load requirements
Torque ControlAuto increase:auto riase torque by loading condition;Manual  increase:enable to set 0.0~20% of raising torque
Multifuncional Input Terminal8 multi-function input terminals,realizing fuctions including  fifteen section speed control,program running, four-section  acceleration/deceleration speed switch,UP/DOWN function and emergency stop  and other functions
Multifuntional Output Terminal3 multi-function output terminals for displaying of  running,zerospeed,counter,external abnormity,program operation and other  infornation and warnings
8 multifunitinal output  terminals, 1 inverter can control 4 ciircular variable frequency pumps
Acceleration/deceleration Time  Setting0~6000 s acceleration/deceleration time can be set individually
Other functionsPID ControlBuilt-in PID control
RS485Standard RS485 communication function (MODBUS)
Frequency SettingAnalog input 0~10V,  0~20мА, can be  selected; Digital input: input using the setting dial of the operation panel  or RS 485 or UP/DOWN
Multi-speedEight multifunction input terminals,15 section speed can be set
Automatic voltage regulationAutomatic voltage regulation function can be selected
CounterBuilt-in 2 group of counters
Overload120%,60second (variable torque)
Over VoltageOver voltage protection can be set
Under VoltageUnder voltage protection can be set
Other ProtectionsOverheat,output shortcircuit,over current,and parameter lock and  so on.
EnvironmentAmbient Temperature-10℃~40℃(non-freezing)
Ambient HumidityMax. 95% (non-condensing)
AltitudeLower than 1000м.
VibrationMax. 0.5 g
StructureCooling ModeBelow 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Protective StructureIP 65
Application

This series are widely used in the industries of plastic, textile; air compressor; Food machine tools, powder, ventilating equipment,drives used outdoors,travelling and conveyor drives in the field of intralogistics, fans and pump drives. so on.
