The 6000X series is a capacitive-touch HMI built specifically for industrial automation. Its touch response is far more sensitive and fluid than resistive screens, delivering precise control through multi-touch capability, a high-resolution display, and seamless system integration — the industrial-grade touch solution for advanced manufacturing.
The all-new slim-bezel design raises the screen-to-body ratio from 45% to 60%, offering a wider viewing experience within the same installation footprint. Featuring an industrial-grade G+G projected capacitive multi-touch panel, the product supports gesture operations such as swiping and pinch-to-zoom, with a light transmittance of over 86% and a 6H surface hardness.

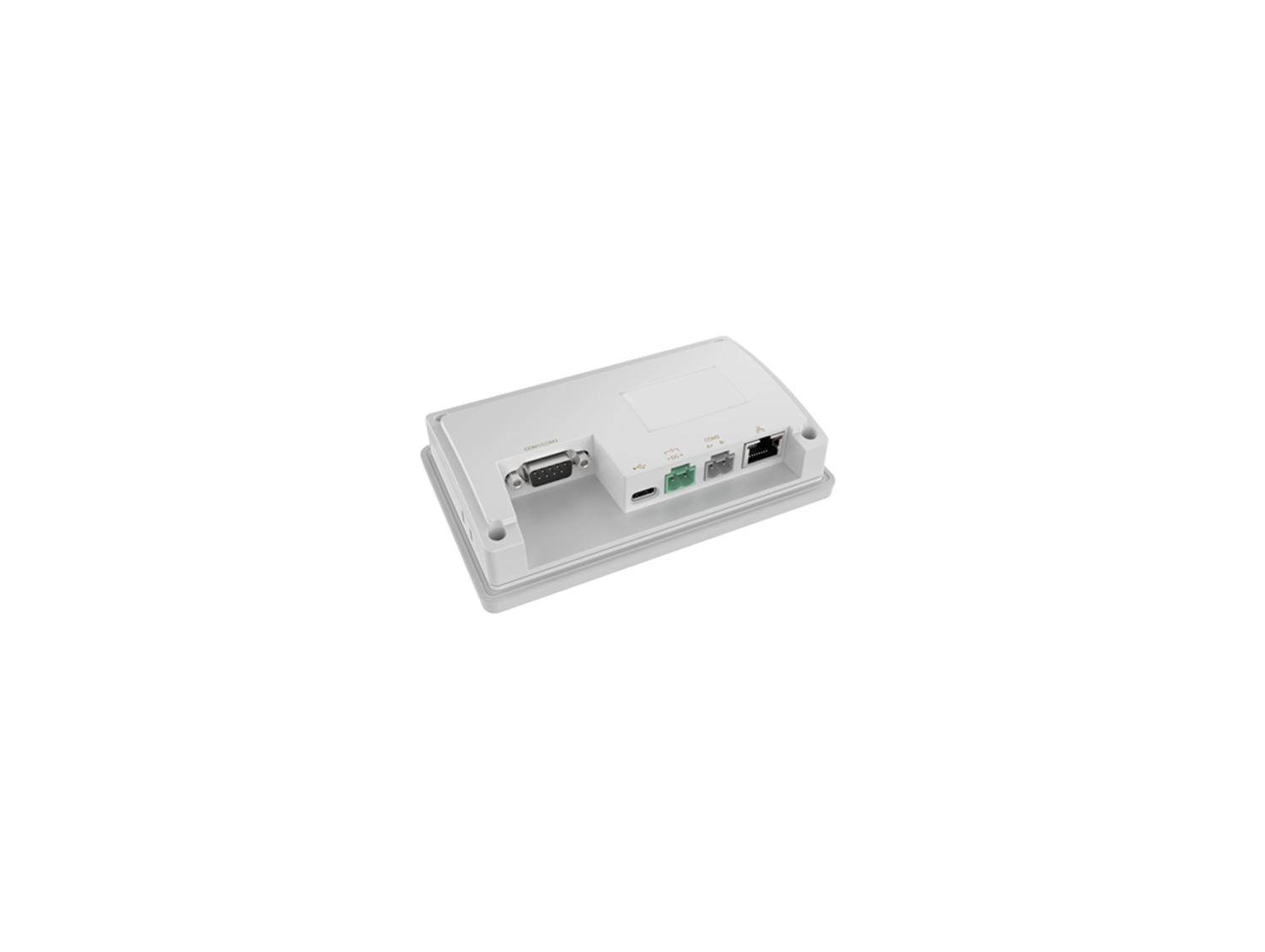

The product is equipped with a rich set of I/O interfaces, including DB-9, Ethernet, USB, and an expansion port for the FLink IoT module, allowing flexible adaptation to a wide range of industrial applications and meeting diverse connectivity and expansion requirements.
| Category | Item | 6380X | 6400X |
| Hardware | Display | 8" 16:9 TFT LCD | 10.1" 16:9 TFT LCD |
| Resolution | 1024×600 | ||
| Colors | 24-bit | ||
| Brightness | 300 cd/m² | 400 cd/m² | |
| Backlight | LED | ||
| LCD Lifetime | 50000 hours | ||
| Touch Panel | Glass+Glass Projection multi-point capacitive touch screen | ||
| CPU | Cortex-A7 (main frequency is 1GHz, dual-core) | ||
| Storage | 256MB DDR3+256MB Flash | ||
| RTC | Built-in | ||
| Ethernet | 1* 10M/100M self-adaptive RJ45 port | ||
| SD Card | NA | ||
| Bluetooth | NA | ||
| USB Port | 1*Type-C 2.0 port; 1*USB Type-A 2.0 port | ||
| Program Download Method | USB Slave/U disk/Ethernet | ||
| Serial Port | COM1: RS232/RS485/RS422 COM2: RS485 COM3: RS232 | ||
| LCD Viewing Angles (T/B/L/R) | 85° / 85° / 85° / 85° | ||
| Software feature | Network Access | Ethernet | |
| Network Band | NA | ||
| VPN Transparent Transmission | Available | ||
| Data Monitoring | 300 points, supports timing or event-based upload | ||
| Alarm Notification | 100 points, support client push, SMS push, WeChat official account push | ||
| Historical Data | 30 points, supports restoration resume downloads, 50k records per point in offline storage, and cloud storage retention for 60 days | ||
| Edge Computing | 20 points, Supports script programming | ||
| Network Protocol | Supports over 400 industrial device protocols | ||
| Management and Maintenance | Supports remote firmware upgrade; supports import and export of configuration file | ||
| Electrical feature | Rated Power | <10W | |
| Rated Voltage | DC24V, operational range: DC 9V~28V | ||
| Power Protection | Lightning surge protection | ||
| Power Interruption Tolerance | <5ms | ||
| Environmental requirement | Operating Temperature | 0~50℃ | |
| Storage Temperature | -20~60℃ | ||
| UV Resistance | Operating in high UV environment is prohibited (e.g., in direct sunlight) | ||
| Environmental Humidity | 10%~90%RH (non-condensing) | ||
| Vibration Endurance | 10~25Hz (X/Y/Z direction, 2G/30 minutes) | ||
| Cooling Method | Natural air cooling | ||
| Mechanical feature | Protection Level | Front: IP65 (with flush panel cabinet installation), Rear: IP20 | |
| Enclosure Material | Engineering plastic | ||
| Cut out dimension | 190mm×136mm (+1.0mm/-0.5mm) | 260mm×202mm (+1.0mm/-0.5mm) | |
| Dimension HMI | 204mm×145mm×36.6mm ( ±0.5mm) | 273mm×213mm×36.6mm ( ±0.5mm) | |
| Weight | 476g | 920g | |
