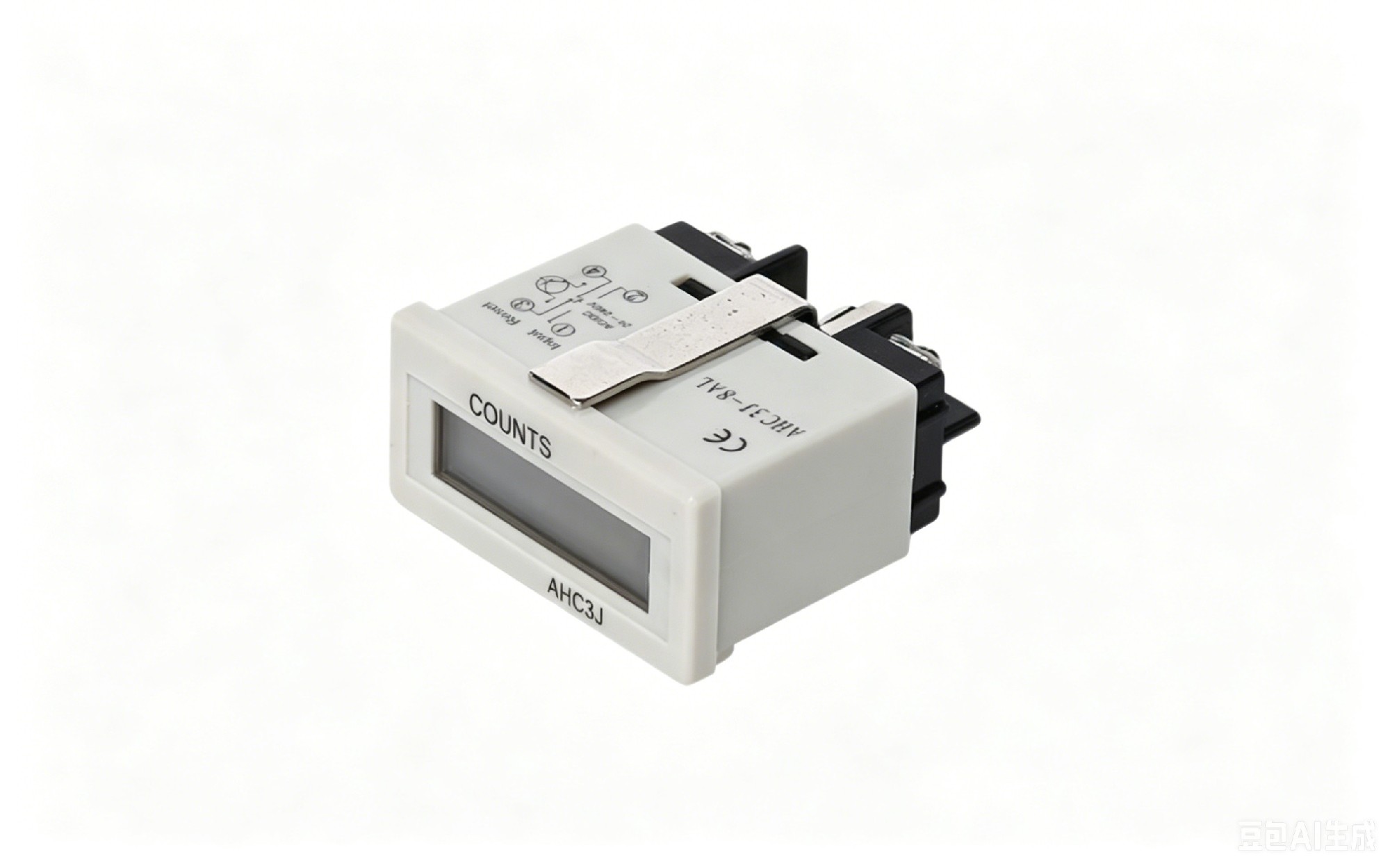

Digital Counters
Digital counter is suitable for recording the number of operations for mechanical equipment. The unit has a variety of display digits to choose.
Digital counter is suitable for recording the number of operations for mechanical equipment. The unit has a variety of display digits to choose.
Improved noise immunity
No mechanical wear, long life
6 or 8-bit LCD display, the display is large and clear
Built-in lithium battery, no external power supply
Panel reset with a pin fixed to prevent misuse (6-bit)
Install all type: Front panel installation, DIN48mmX24mm standard panel size
Scalable panel into 50mmX50mm
Screw terminal
| Allowable operating voltage range | 85~110% of rated operating voltage |
| Contact rating | 250VAC 5A (resistive load) |
| Counting speed | AC:10CPS; DC:35CPS |
| Life | 2×10000000 times |
| Insulation resistance | ≥ 100MΩ(DC 500V) |
| Dielectric strength | 1500VAC RMS |
| Power consumption | AC:3VA; DC:3.5W |
| Ambient temperature | -10℃～+50℃ |
| Ambient humidity | 48～85%RH |
The hour meter also features a long reset time to offer customers the protection against malfunction of reset. Shock and vibration resistance allow for use in a wide variety of tough transportation applications.
- Automated production line
- Testing equipment
- Material-handling equipment
- Mowers
- Boiler
Counter
