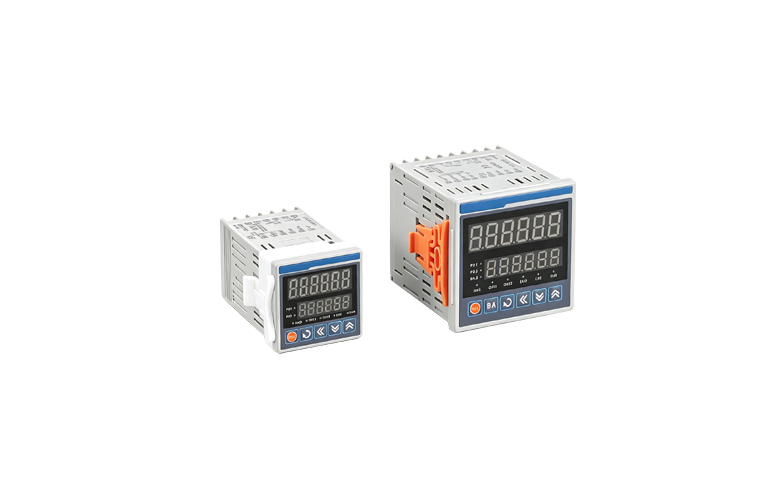

This multifunctional timing‑counter features both timing and counting modes for diverse industrial automation applications. It offers flexible time‑setting ranges, high‑speed signal input and multiple configurable input & output modes. Functions including forward/countdown timing and power‑off memory ensure stable and reliable operation on‑site.
Timing counter can be used in industrial control occasions, with timing work and counting two modes of work, can be selected according to the use of the scenario.
One‑shot output time, in the unit of 10ms, can be set 0.01 seconds to 99.99 seconds;
Display range 0.00001~99999.9;
9 input modes, 11 output modes to choose from;
BATCH count, count initial value setting function;
Up to 10kCPS input speed is optional;
12 time range formats available;
13 output modes to choose from;
Wide time setting range (0.001 s ~99999.9 h)
Support forward timing and countdown;
Power off memory function;
| Item | Specification |
| Voltage | AC power supply type: 100-240VAC 50/60Hz |
| DC power supply type: 24VDC | |
| Power consumption | ≤12VA |
| INA/INB Maximum counting speed | 1cps/30cps/1Kcps/5Kcps/10Kcps selectable |
| Counter — Reset output: 1ms, 20ms optional | |
| Timepiece — INA, RESET, INHIBIT, BATCH RESET signal: 2ms, 20ms optional | |
| Input mode | Voltage free input |
| One-shot output time | Counter, timer: 0.01 seconds ~ 99.99 seconds |
| Memory storage | 10 years (non-volatile semiconductor memory) |
| Connection mode | Terminal |
| Ambient humidity | -25~+70°C (Unfrozen state) |
| Storage temperature | -30~+80°C (Unfrozen state) |
| Humidness | 35%~95%RH (condensation state) |
