ZX200 Series PLC & IO Modules

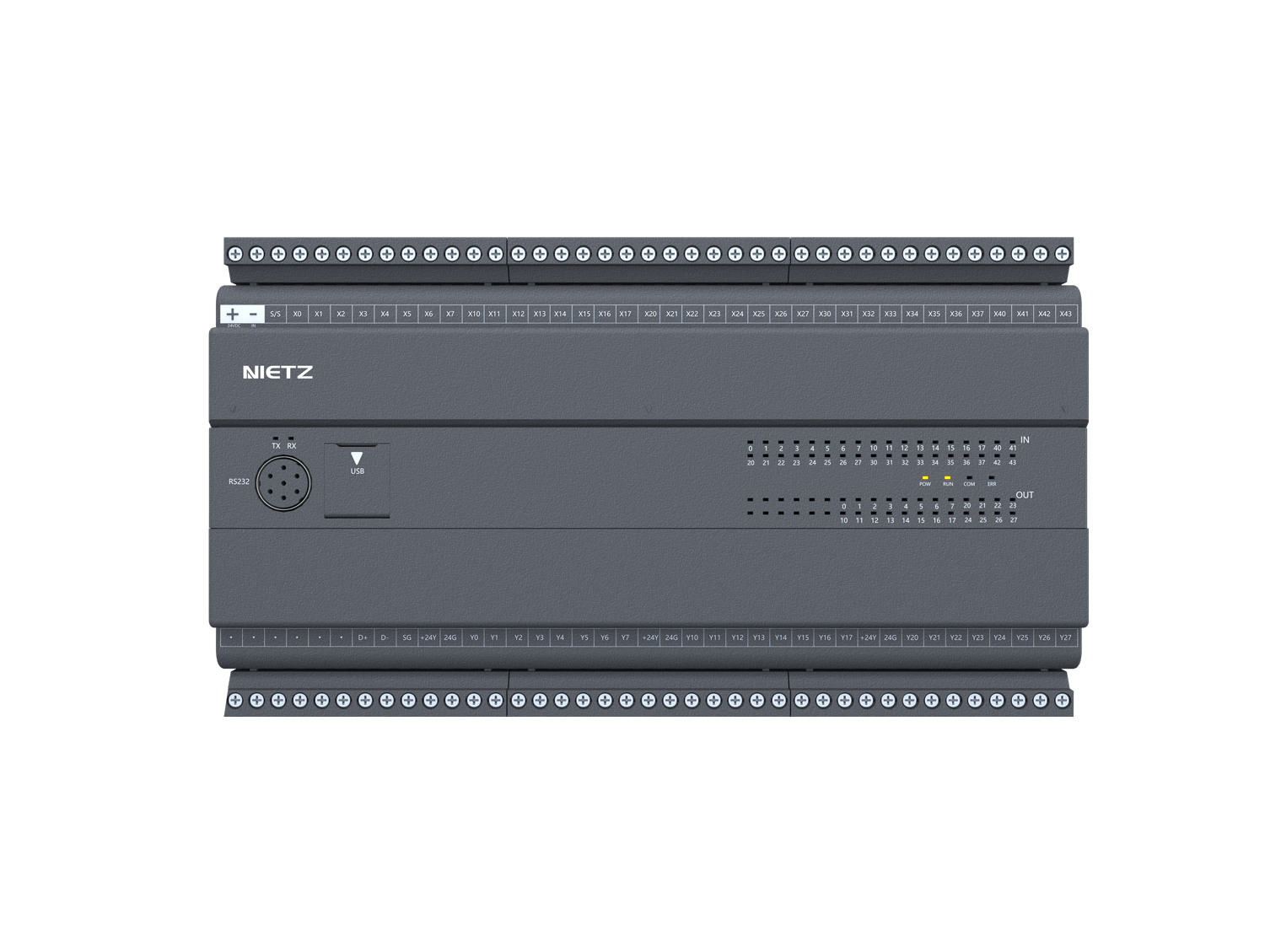

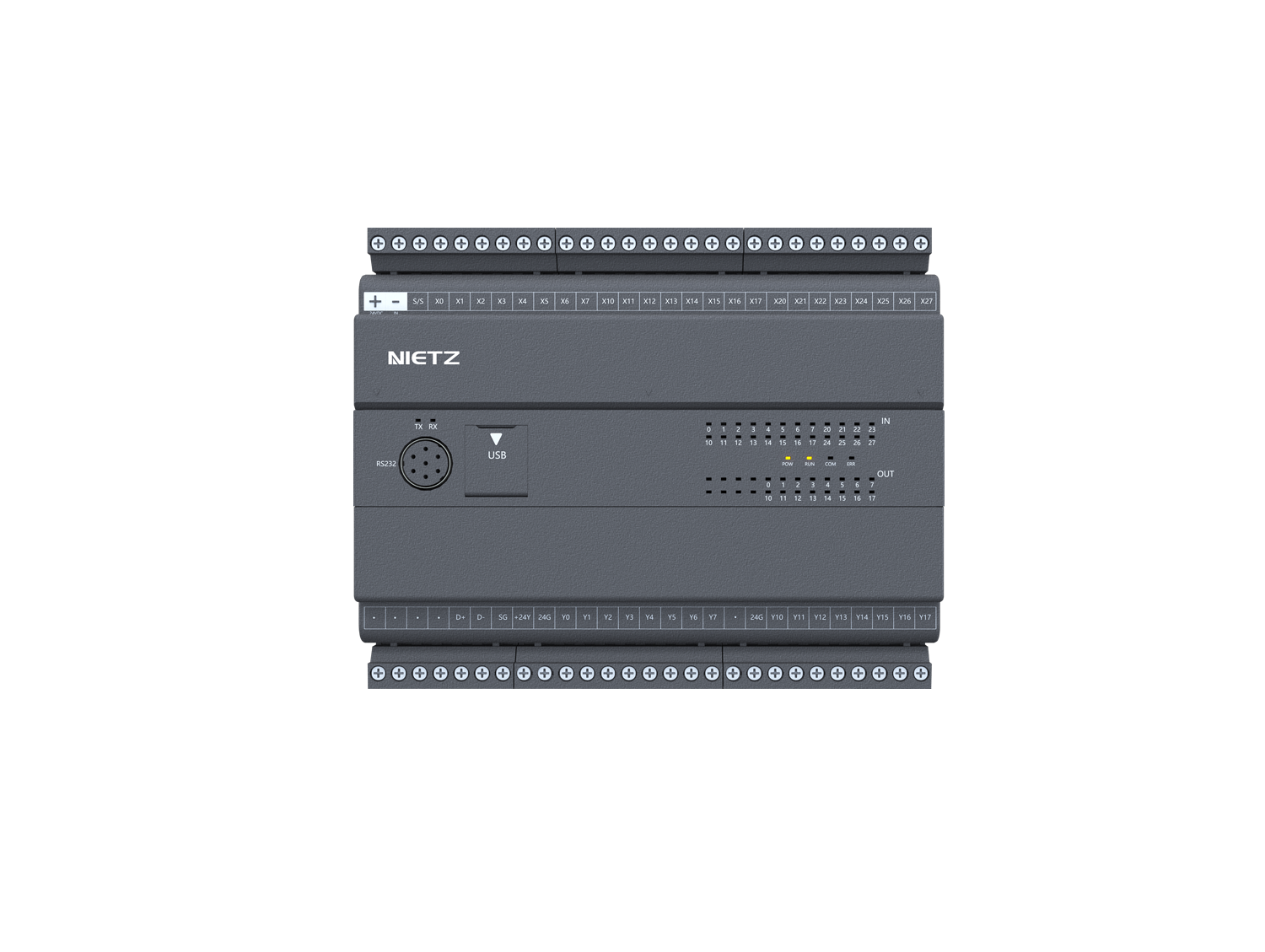

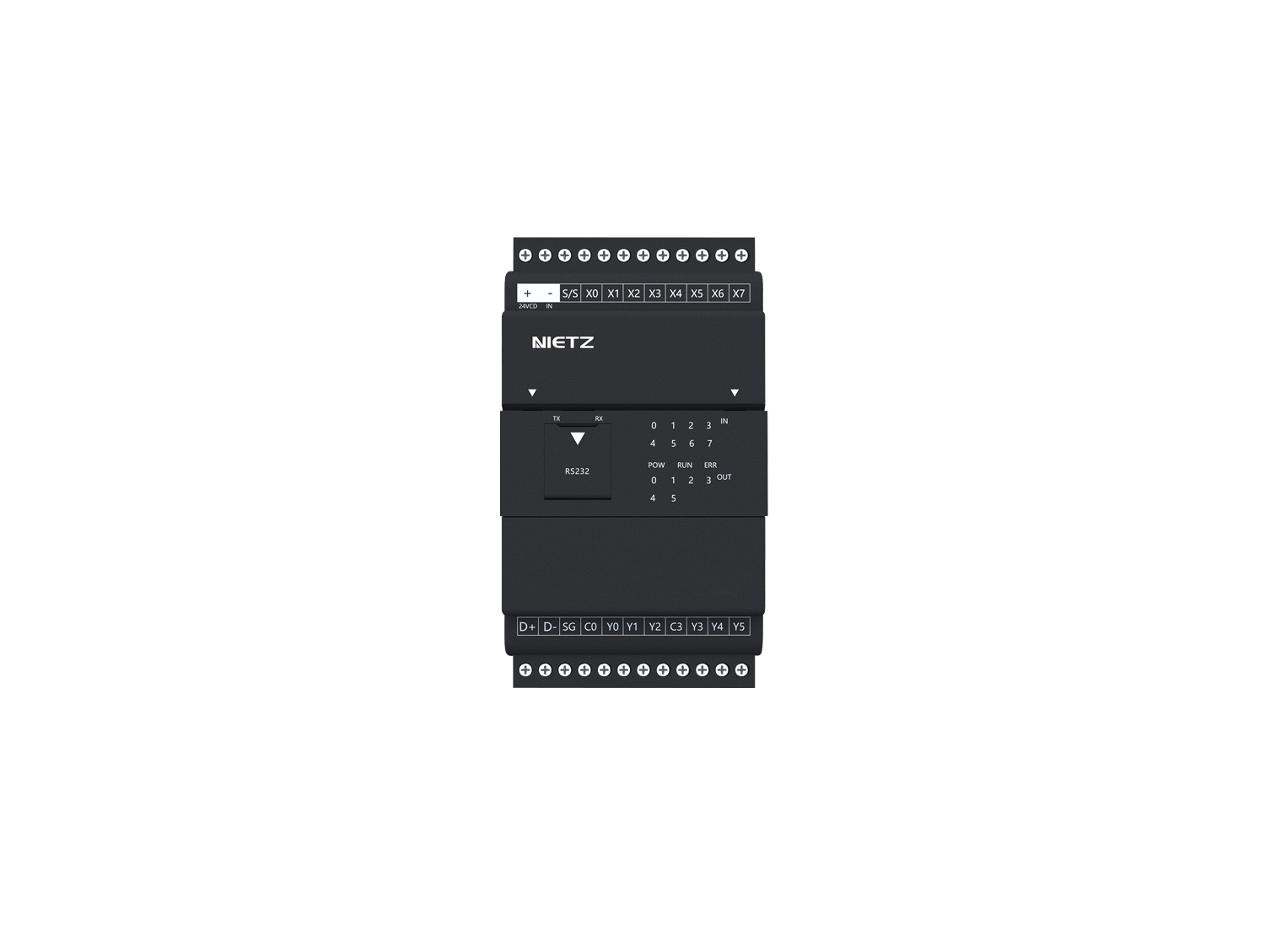

The ZX200‑series is a general‑purpose PLC with main‑unit I/O points ranging from 16 to 60. It can be equipped with a variety of expansion modules, achieving a maximum I/O capacity of 256/256 points. Featuring high‑speed pulse input and output, it is fitted with RS232, dual RS485 and Ethernet ports, and supports MODBUS ASCII, MODBUS RTU, Ethernet and free‑port RS communication protocols. Mixed‑mode programming in C‑language, Ladder Diagram and SFC is available.

info@nietz.cn +86 13764513349 Inquiry

Features

Features:

‑ 60K program memory capacity.

‑ 2‑8 channels of 200 kHz high‑speed pulse input and 1‑4 channels of A/B‑phase high‑speed input.

‑ 2‑12 channels of 200 kHz high‑speed pulse output. ‑ Equipped with RS232, dual RS485 communication ports and an Ethernet port; supports MODBUS ASCII, MODBUS RTU, MODBUS TCP/IP, Ethernet and free‑port RS communication protocols.

‑ 60K program memory capacity.

‑ Programs are saved to Flash memory for power‑fail retention; no battery‑back‑up is required.

‑ Supports connection with up to 16 digital and analogue expansion modules, expandable to 256/256 isolated input/output points.

‑ Supports mixed‑mode programming in C‑language, Ladder Diagram and SFC.

‑ Program encryption is provided. Programs can be downloaded and monitored via USB flash‑drive or double‑ended USB cable for faster communication, with a download speed up to 12 Mbps.
