Active Power Filter (APF)
Active Power Filter (APF)
Active Power Filter (APF)

The active power filter (APF) is mainly composed of controller, isolation switch (circuit breaker), contactor, IGBT, driving circuit, protection system, fuse, connection reactor, DC capacitor, etc. The controller measures phase A, C reactive power(current), produces control signal, drives IGBT on/off and produces harmonic and reactive current same as system harmonic current but in opposite phase to filter system harmonic, reduce reactive power and keep system power factor approximately at 1.

Features

Our APF equipment is module structure, there are two types Wall Mounted and cabinet mounted. The Wall Mounted type is preferred to be used in equipment improvement which is very convenient to install.

The NIETZ Modular Active Harmonic Filter series are suitable for applications of all types, providing harmonic mitigation, load balancing and step-less reactive power compensation for inductive and capacitor loads.

Specifications
ItemAPFSVG (kVa)
SpecificationsModule specification3050751001503050100
Number of parallel possibilities16
InputWork voltage400v/690(-20%~+15%)
Work frequency50Hz(-10%~+10%)
Current transformer100:5~10000:5
Output600 width450A300 Kvar
800 width900A600 Kvar
FunctionTo compensate the harmonic2-50 times2-13 times (50 percent of the rated current)
Harmonic filtration rate>97%
Reactive power compensation -1~+1 adjustable
Compensate for three imbalances100%Full compensation for imbalance
communication protocolcommunication modeRS232; RS485; Modbus; TCP/IP optional
communication interfaceRs485, net mouth
upper machine softwareHave, all parameters are set though the upper computer
Failure warningHave, Record up to 500 alarm messages
MonitoringSupport each module independent monitoring
Technical indicatorsFull response time<10ms
Active loss<3%
the cooling wayIntelligent air cooling
Noise<60dB
sampling/control frequency200kHZ
Equivalent Switch frequency43.2kHZ
cutoff frequency of current loop6.4kHZ
protection functionoverpressure, under voltage, over hearting, Over current, a short current, etc.
CT Installation positionThe load side/The grid side optional
Mechanical propertieshanging sizeThe wall hanging is the same size as the module
Module weight25Kg(≤75A/50kvar)50kg(≥100A/100Kver)
colorFine orange lines.
Environmental requirementWorking temperature -10ºC~+45ºC
An altitude of<1500 Meters
Relative humidity<99% no lon
protection gradeIp20

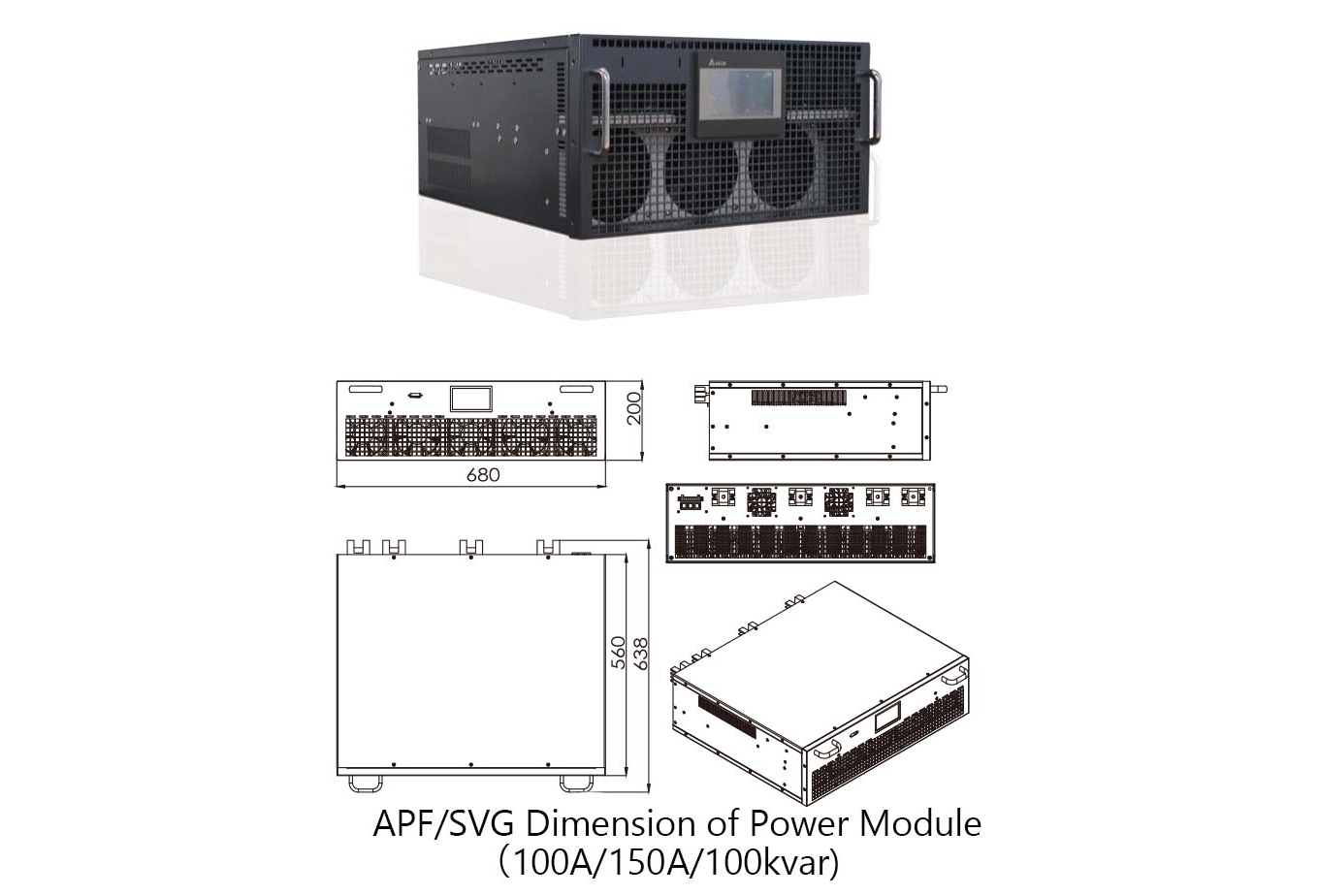

Dimension info of Wall mounted power Module

Wall mounted size.png


Select Models Guide of APF
Products400V,  Active Power Filter (APF)
Power of Module30A50A75A100A150A
Type   of mounting either will do Wall Mounted and Rack
Dimension (WxDxH)600x800x2200800x800x2200
800x800x2200800x1000x2200
800x1000x22001000x800x2200
1000x800x22001000x1000x2200
1000x1000x2200/
Number of parallel possibilities max. 16 units
Max. power for width 600 models6x75A=450A/
Max. power for width 800 models/6x150A=900A



Select Models Guide of SVG
Products400V,  Static Var Generator (SVG)
Power of Module30 kVa50 kVa100 kVa
Compensate   for unbalanced current45A75A150A
Compensate   for Harmonic current25A40A80A
Type   of mounting either will do Wall Mounted and Rack

Dimension (WxDxH)600x800x2200800x800x2200
800x800x2200800x1000x2200
800x1000x22001000x800x2200
1000x800x22001000x1000x2200
1000x1000x2200/
Number of parallel possibilities max. 16 units
Max. power for width 600 models6x50kVa=300kVa/
Max. power for width 800 models/6x100kVa=600kVa

APG size-1.png
