FC808E series Engineering AC Drives Low Voltage-Nietz Electric Co.,Ltd

Features

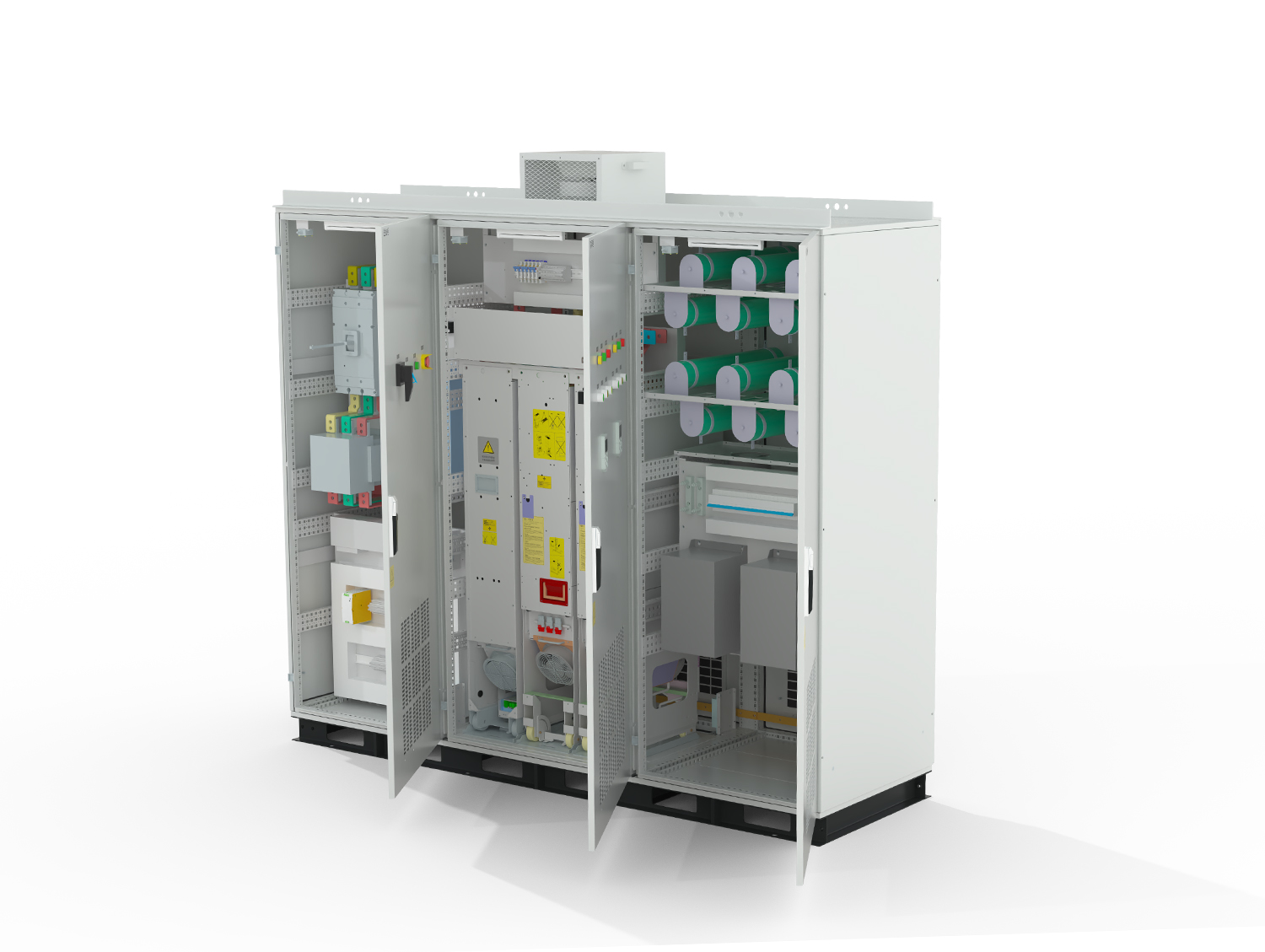

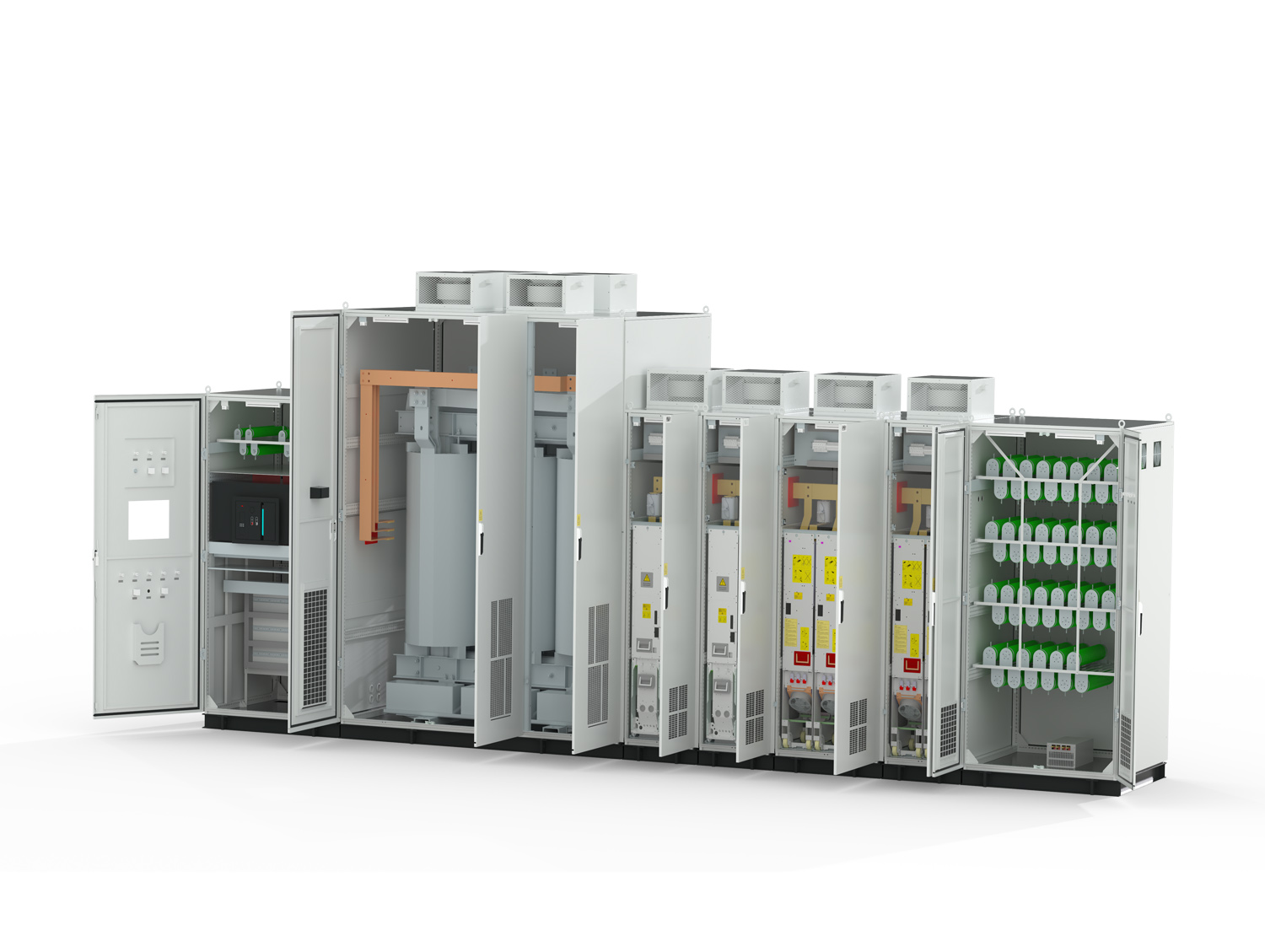

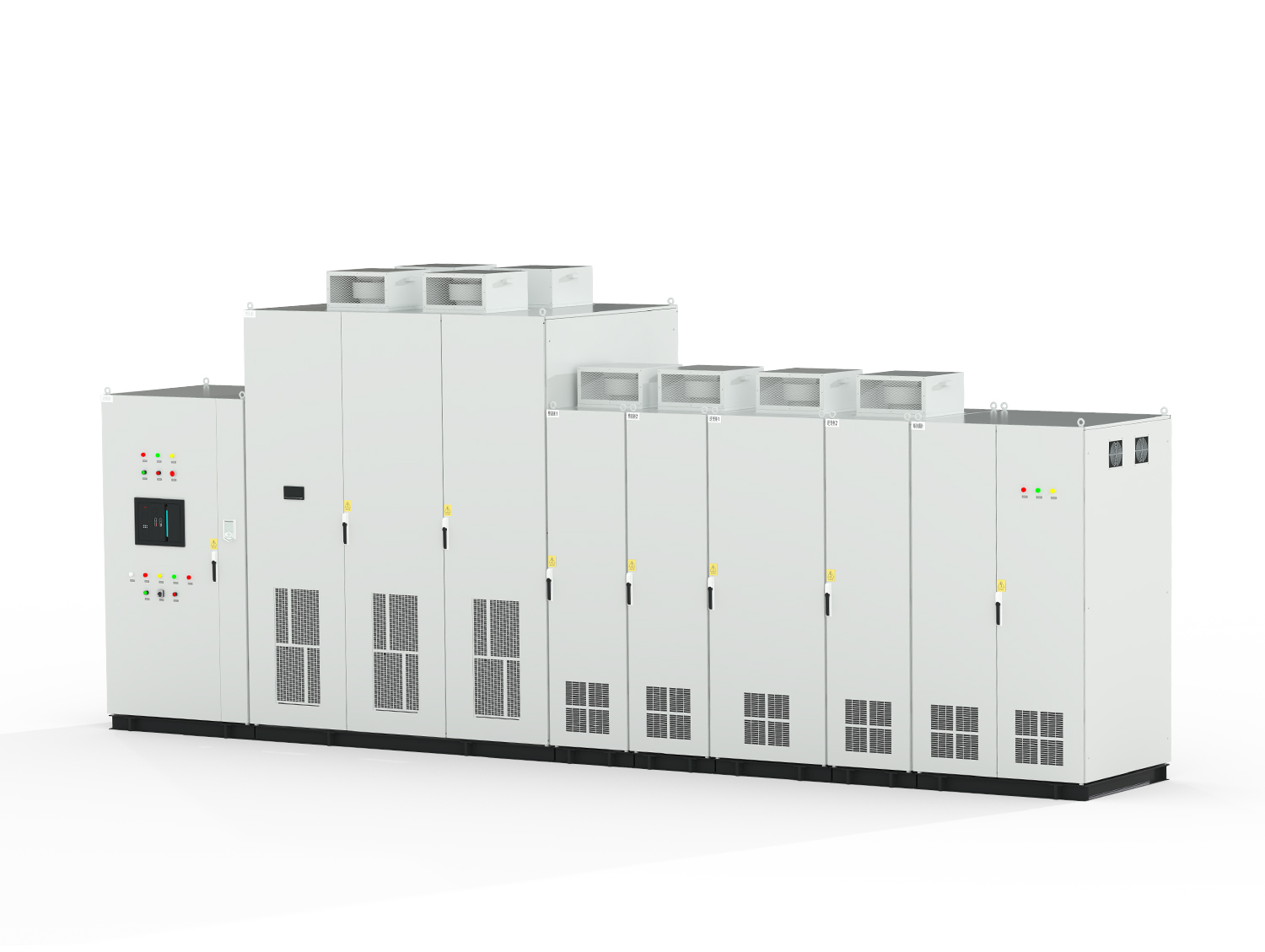

The FC808E series high-performance engineering inverters are divided into two topological forms: single-machine drive and multi-machine drive. It is a high-performance, high-reliability drive product positioned for high-end drive applications. The voltage level covers the requirements of 400 V and 690 V voltages, and the power range covers 3.7 kW ~ 5600 kW. Whether it is module structure, power density, response and accuracy, they are all leading. The FC808E series inverters can be widely used in continuous production lines such as metallurgy and papermaking, as well as large equipment such as ships, drilling rigs, shield machines, and port quay cranes.

Engineered Reliability

• Highly redundant control and power systems enhance overall product reliability

• Long-life thermal design extends service life of vulnerable components (e.g., fans, capacitors)

• Innovative high-thermal-capacity heatsinks improve tolerance to instantaneous heavy impact loads

• Fiber-optic connections between control system and power units boost noise immunity

• Isolated cooling channels enhance component protection and environmental adaptability

Modular Design

• No special tools required for simple, rapid operations

• Component-level modularity with full front-access maintenance

• Intelligent diagnostics enable rapid fault localization

• Cost minimization during operation, maintenance, and service: All device modules are easily accessible, which makes them extremely service friendly.

• Space-saving design, simple commissioning

• The converters are exceptionally quiet and compact

Robust Adaptability

• Supports single-axis/multi-axis drives, unit/module cabinet configurations, two-quadrant/four-quadrant operation

• Comprehensive rectifier front-ends: basic rectifier, smart rectifier, and PWM rectifier

• Wide input voltage range with exceptional grid adaptability

• Precision mechanical engineering ensures high seismic resistance

Customizable Communication Protocols

• Optional modules support tailored protocols for seamless integration with existing PLCs, facilitating replacement and maintenance

• Multi-protocol industrial bus support: Profibus-DP, CANopen, Profinet IO, Modbus RTU/TCP, EtherCAT, EtherNet/IP, ControlNet, DeviceNet - enabling effortless industrial device interconnectivity

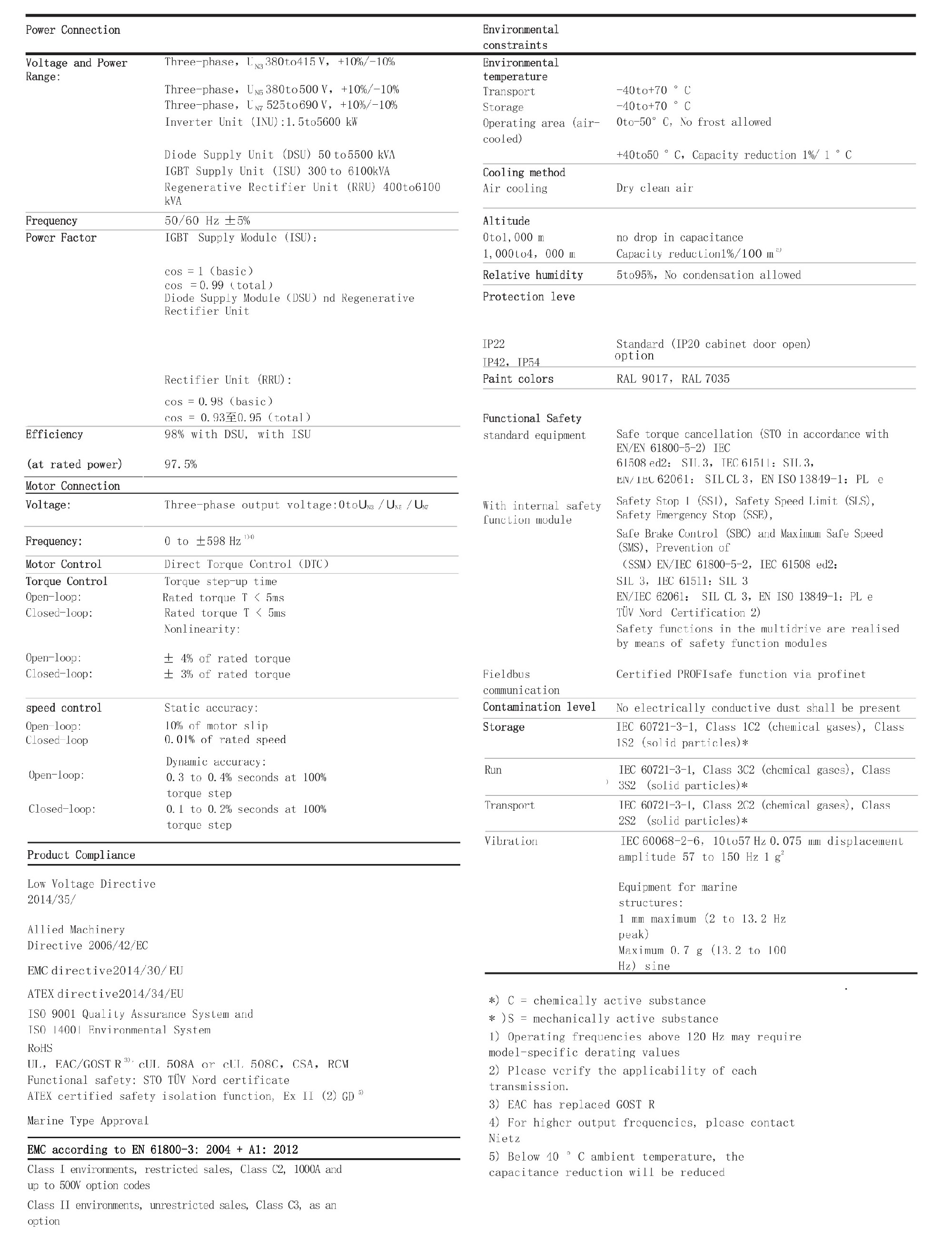

Specifications

Power Connection
Voltage and Power Range:	Three-phase, U_N3380 to 415V,+10%/-10% Three-phase, U_N5 380 to 500 V,+10%/−10% Three−phase,U_N7 525 to 690V, +10%/−10% Inverter Unit (INU): 1.5 to 5600kW Diode Supply Unit (DSU) 50 to 5500 kVA IGBT Supply Unit(ISu) 300 to 6100kVA Regenerative Rectifier Unit(RRU) 400 to 6100kVA
Frequency	50/60 Hz ±5%
Power Factor	IGBT Supply Modulc (ISU): cos=1(basic) cos =0.99(total) Diode Supply Module (DSU) nd Regenerative Rectifier Unit Rectifier Unit (RRU): cos=0.98(basic) cos=0.93-0.95(total)
Efficiency at rated power	98% with Dsu, with ISU 97.5%
Motor Connection
Voltage	Three-phase output voltage: 0 to U_N3/ UNE / UN7
Frequency	0 to ±598 Hz^{1) 4)}
Motor Control	Direct Torque Control(DTC)
Torque Control Open-loop: Close-loop:	Torque step-up time Rated torque T< 5ms Rated torque T< 5ms


Nonlinearity: 0pen-loop: Closed-loop:	± 4% of rated torqu ± 3% of rated torquee


speed control 0pen-loop: Closed-loop:	Static accuracy: 10% of motor slip 0.01% of rated speed
Open-loop :	Dynamic accuracy: 0.3 to 0.4% seconds at 100% torque step
Closed-loop:	0.1 to 0.2% seconds at 100% torque step
Product Compliance
Low Voltage Directive 2014/35/ Allied Machinery Directive 2006/42/EC EMC directive2014/30/ EU ATEX directive2014/34/EU ISO 9001 Quality Assurance System and ISO 14001 Environmental System RoHS UL，EAC/GOST R³⁾，cUL 508A or cUL 508C，CSA，RCM Functional safety: STO TÜV Nord certificate ATEX certified safety isolation function, Ex II (2) GD⁵⁾Marine Type Approval
EMC according to EN 61800-3: 2004 + A1: 2012
Class I environments, restricted sales, Class C2, 1000A and up to 500V option codes Class II environments, unrestricted sales, Class C3, as an option
Environmental temperature
Transport	-40 to +70°C
Storage	-40 to +70°C
Operating area (air- cooled)	0 to+50°C，No frost allowed +40 to 50 °C，Capacity reduction 1%/ 1 °C
Cooling method
Air cooling	Dry clean air
Altitude
0 to 1,000 m	no drop in capacitance
1,000 to 4,000 m	Capacity reduction 1%/100m
Relative humidity	5 to 95%，No condensation allowed
Protection leve
IP22	Standard (IP20 cabinet door open)
IP42，IP54	option
Paint colors	RAL 9017，RAL 7035
Functional Safety
standard equipment	Safe torque cancellation (STO in accordance with EN/EN 61800-5-2) IEC (at rated power) 97.5% 61508 ed2： SIL 3，IEC 61511：SIL 3， Motor Connection EN/IEC 62061： SIL CL 3，EN ISO 13849-1：PL e
With internal safety function module	Safety Stop 1 (SS1), Safety Speed Limit (SLS), Safety Emergency Stop (SSE), Safe Brake Control (SBC) and Maximum Safe Speed (SMS), Prevention of（SSM）EN/IEC 61800-5-2，IEC 61508 ed2: SIL 3，IEC 61511: SIL 3 EN/IEC 62061: SIL CL 3，EN ISO 13849-1：PL e TÜV Nord Certification 2 Safety functions in the multidrive are realised by means of safety function modules)
Fieldbus communication	Certified PROFIsafe function via profinet
Contamination level	No electrically conductive dust shall be present
Storage	IEC 60721-3-1, Class 1C2 (chemical gases), Class 1S2 (solid particles)*
Run	IEC 60721-3-1, Class 3C2 (chemical gases), Class 3S2 (solid particles)*
Transport	IEC 60721-3-1, Class 2C2 (chemical gases), Class 2S2 (solid particles)*
Vibration	IEC 60068-2-6，10to57 Hz 0.075 mm displacement amplitude 57 to 150 Hz 1 g2 Equipment for marine structures: 1 mm maximum (2 to 13.2 Hz peak) Maximum 0.7 g (13.2 to 100 Hz) sine
