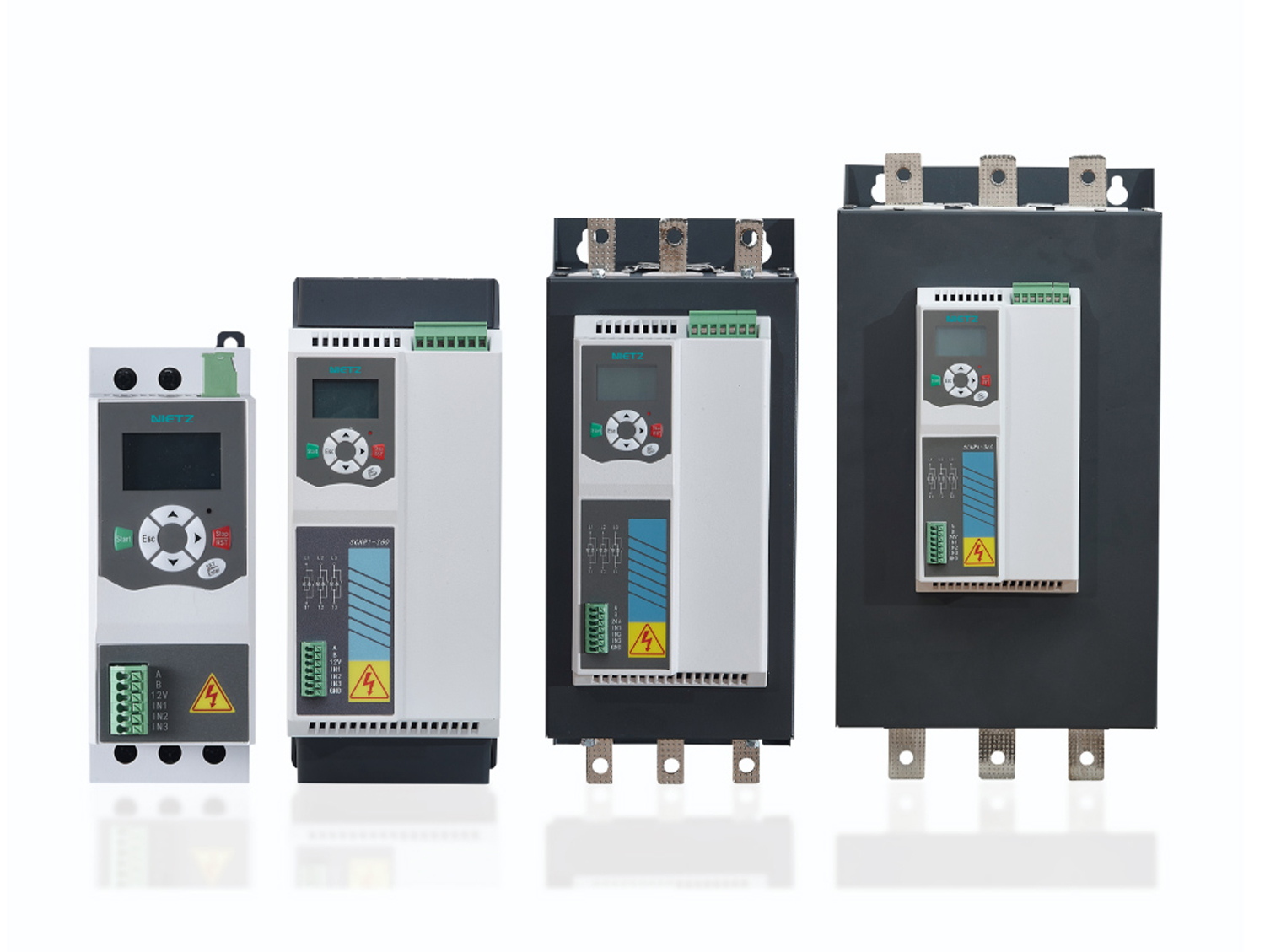

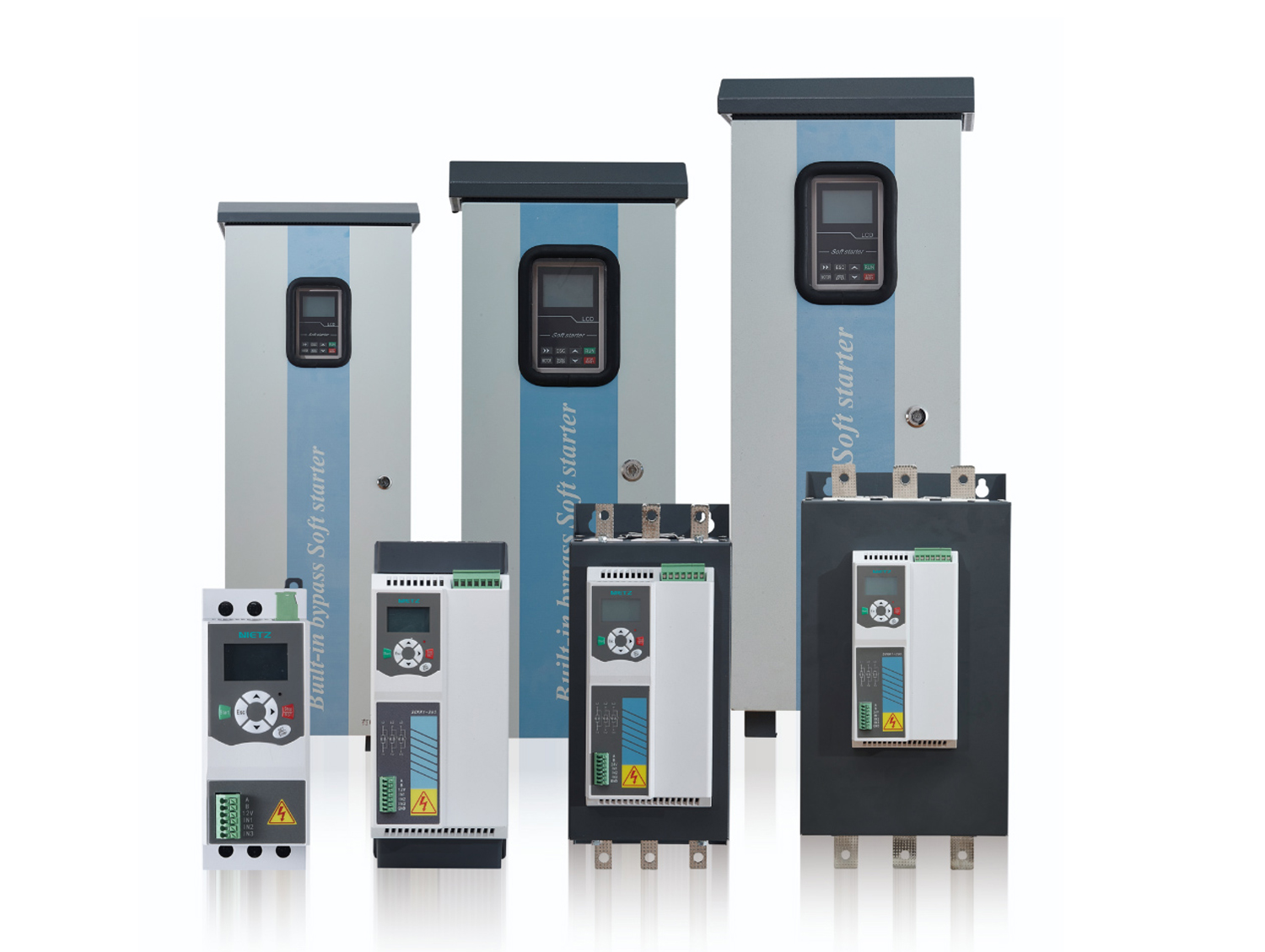

The
SVT is most advanced Low Voltage soft starter, with built-in bypass and
3-phase control, .It has multiple motor protection functions guarantees
long term reliability while the built-in bypass ensures excellent
performance.
The
SVT is most advanced Low Voltage soft starter, with built-in bypass and
3-phase control, .It has multiple motor protection functions guarantees
long term reliability while the built-in bypass ensures excellent
performance.
Simple installation: with DIN-rail or keyhole options
Bypass built-in & Modbus RS485 communication
Power range 3.7-115kW; 220V /400V
Safety: Multiple protection
Compact design: with extremely compact dimensions, the book-style design and the seamless connection saves space in the control cabinet.
Item | Spetification |
oltage & Power | 3 phase, 220-400V; 3.7-115kW |
Frequency | 50/60 Hz ± 2% |
Adapting Motor type | Asynchronous AC Motor |
Start frequency | No more 10 times in 60 min. (no more than once every 6 min.) |
Starting voltage | 30 - 80 % |
Start current limit | 200 - 600 % |
Start time | 1 - 120 s |
Stop time | 0 - 60 s |
Max. operating current | 50 - 600 % |
Start mode | current limiting |
voltage ramp | |
Stop mode | coast stop |
soft stop | |
Bypass | Built-in |
Voltage of control board | 230V, independent of the power unit |
Built in Power supply | 12 V / below 15kW |
24 V / below 18.5kW | |
Relay output | Below 15kW: 1 (250VAC 3A; 30VDC 3A) |
Above 18.5kW: 2(250VAC 3A; 30VDC 3A) | |
Input | 3 digital |
Analog output | non |
Communication | Modbus RTU |
Protective function | Optimal protection complex |
Protective class | IP20 |
Cooling system | up to 15 kW: natural air cooling |
from 18.5 kW: forced cooling | |
Optional | Remove keypad LCD |
- Mining
- Oil & Gas
- Water Pumps
- Hvac
- Compressor
- Fan
- Hydraulic Power Pack
- Hydraulic Pump
- PipeLine Heating
- Pump
- Water Pump
