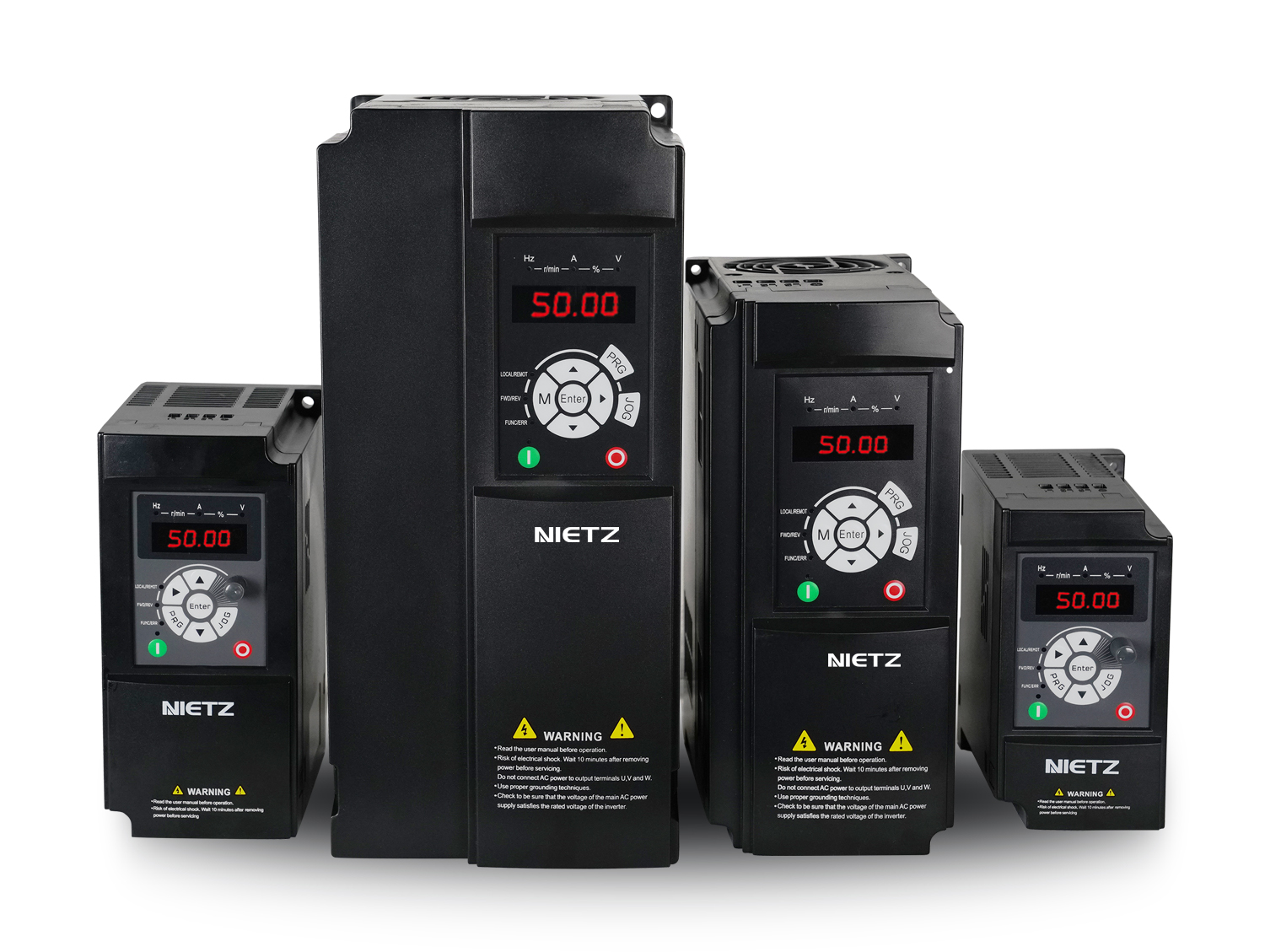

AT20 series General Purpose Inverters
AT20 series General Purpose Inverters
AT20 series General Purpose Inverters
AT20-1
AT20-3
AT20-2
AT20 series General Purpose Inverters

- Excellent Control Performance;
- Optimized Structural Design;
- Various Installation Methods;
- Easy to Use and Maintain;
- Various communication type: Modbus RTU, Profinet, EhterCAT; Encoder cards
- Various in Product Configuration and Interface , Powerful in Function;
- Integrate Various Product Features to Meet Diverse Application Needs.




Features

● Excellent Control Performance
Below 2.2KW (including) can support either V/F control or vector control; Above 3.7KW (including) is vector control and can add PG card when customer tell they need.
● Optimized Structural Design
Size is reduced, saving the installation space for users;
Below 2.2KW (including) support side-by-side rail mounting.
● Various in Product Configuration and Interface, Powerful in Function
With standard built-in 485 communication interface and various input terminals and various output terminals;
Above 7.5KW (including) has external keyboard interface to better suit the applications;
30KW (including) ~ 160KW (including) inverter can optionally (just have when customer tell they need) be equipped with built-in DC reactor to improve its power factor; Below 37KW (including) with standard built-in brake unit; 45KW(including)~110KW(including), optional (just have
when customer tell they need) built-in brake unit.
● Various Installation Methods
Below 5.5KW (including) support rail mounting and wall mounting;
7.5KW (including) -160KW (including) support wall-mounting;
Above 185KW (including) support floor mounting and wall mounting.
● Easy to Use and Maintain

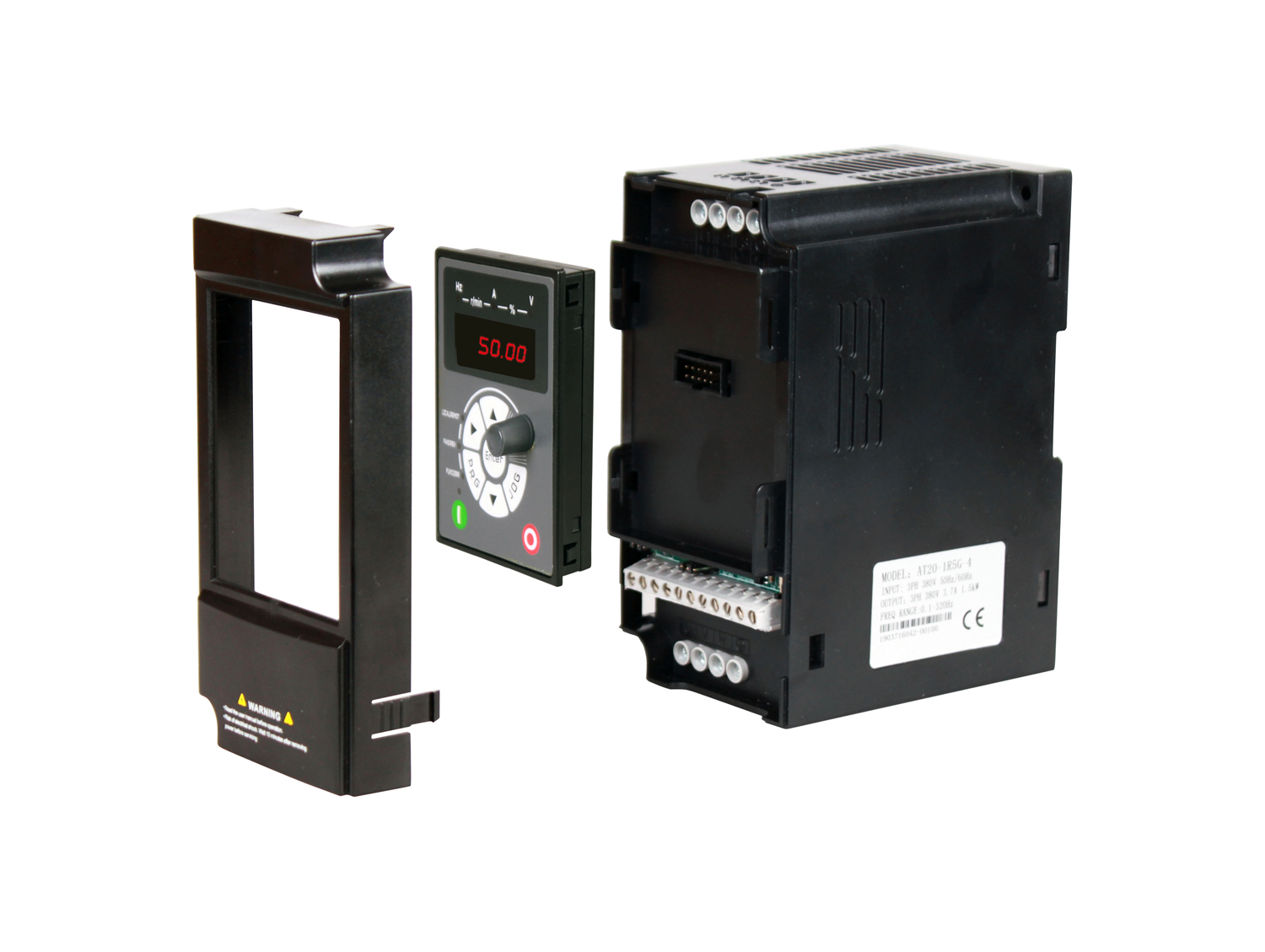

The fan can be disassembled and assembled independently for easy maintenance;
Optional normal LED external keyboard and LCD keyboard (above 7.5KW (including)) to meet different application needs.
● Integrate Various Product Features to Meet Diverse Application Needs
Simple PLC, multi-speed control, built-in PID, torque control, multi-point V/F curve,inverter not stop work when face instant power failure, etc.

Specifications
ItemSpecifications
Basic functionControl   ModeV/F   control
Sensorless flux vector control (SVC)(Above 3.7K)
Close-loop vector control (FVC)(Above 3.7KW)
Maximum frequency0~600Hz
Carrier frequency0.5kHz~8kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolutionDigital setting:0.01Hz
Analog setting: Maximum frequency x 0.025%
Start torqueG Type:0.5Hz/150%(SVC);
P Type:0.5Hz/100%
Speed range1:100(SVC)
Speed stability accuracy±0.5%(SVC)
Overload capacity

GType:60s for 150% of the rated current,3s for 180% of the rated   current.

PType:60s for 120% of the   rated current,3s for 150% of the rated   current.
Torque boostAuto-boost;
Customized boost: 0.1%~30.0%
V/F CurveStraight-line  V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation2 types: complete separation; half separation
Ramp ModeStraight-line ramp.
Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
DC brakingDC braking frequency:0.00Hz~Maximum   frequency
Braking time:0.0s~36.0s
Braking action current value:0.0%~100.0%
JOG controlJOG   frequency range:0.00Hz~50.00Hz。
JOG acceleration/deceleration time:  0.0s~6500.0s。
Simple PLC、Multiple preset speedsIt implements up to 16 speeds via the simple PLC function or combination of terminal states
Onboard PIDIt realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR)It can keep constant output voltage automatically when the mains voltage changes
Overvoltage/overcurrent stall controlThe current and voltage are limited automatically during the running process so   as to avoid frequent tripping due to over voltage/over current
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Torque limit and controlIt can limit the torque automatically and prevent frequent over current tripping   during the running process. Torque control can be implemented in the FVC   mode.
Individualized functionsHigh   performanceControl of asynchronous motor are implemented through the high-performance current   vector control technology
Rapid dip ride throughThe load feedback energy compensates the voltage reduction so that the AC drive   can continue to run for a short time
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Timing controlTiming   range: 0.0Min~6500.0Min
Communication methodsRS - 485
RunningCommand   sourceOperation   panel/Control terminals/Serial communication port
You can perform switchover between these sources in various ways.
Frequency sourceThere   are ten frequency sources.
Digital setting, analog voltage setting, analog current setting, pulse   setting, serial port setting.
You can perform switchover in various ways.
Auxiliary frequency sourceThere are ten auxiliary frequency sources. It can implement fine tuning of   auxiliary frequency and frequency synthesis.
Input terminalStandard:4 digital input terminals(Below 5.5KW)/6 digital input terminals(Above 7.5KW)
1 analog input terminal(Below 5.5KW)/2 analog input terminals(Above 7.5KW);
1 voltage input (only support for 0~10V, above 7.5KW),1 voltage input(0~10V) or current   input (4~20mA)
Output terminal1 High-speed pulse output terminal (Open-collector)(Above 3.7KW)
1 replay output terminal (Below 5.5KW)/2 replay output terminals(Above 7.5KW)
1 analog output terminal(3.7KW~5.5KW)/2 analog output terminal(Above 7.5KW), Support for 4~20mA current output   or 0~10V voltage output
Display and operation panelLED   displayIt displays the parameters
Key locking and function selectionIt can lock the keys partially or completely and define the function range of   some keys so as to prevent mal-function.
Protection modeMotor short-circuit detection at power-on, input/output phase loss protection, over current protection, over voltage protection, under voltage protection,   overheat protection and overload protection
EnvironmentInstallation   locationIndoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
AltitudeLower than 1000m
Ambient temperature-10℃~+40℃(de-rated if the ambient temperature is between 40℃~50℃)
HumidityLess  than 95%RH,without condensing
VibrationLess than 5.9m/s2(0.6g)
Storage temperature-20℃~+60℃
