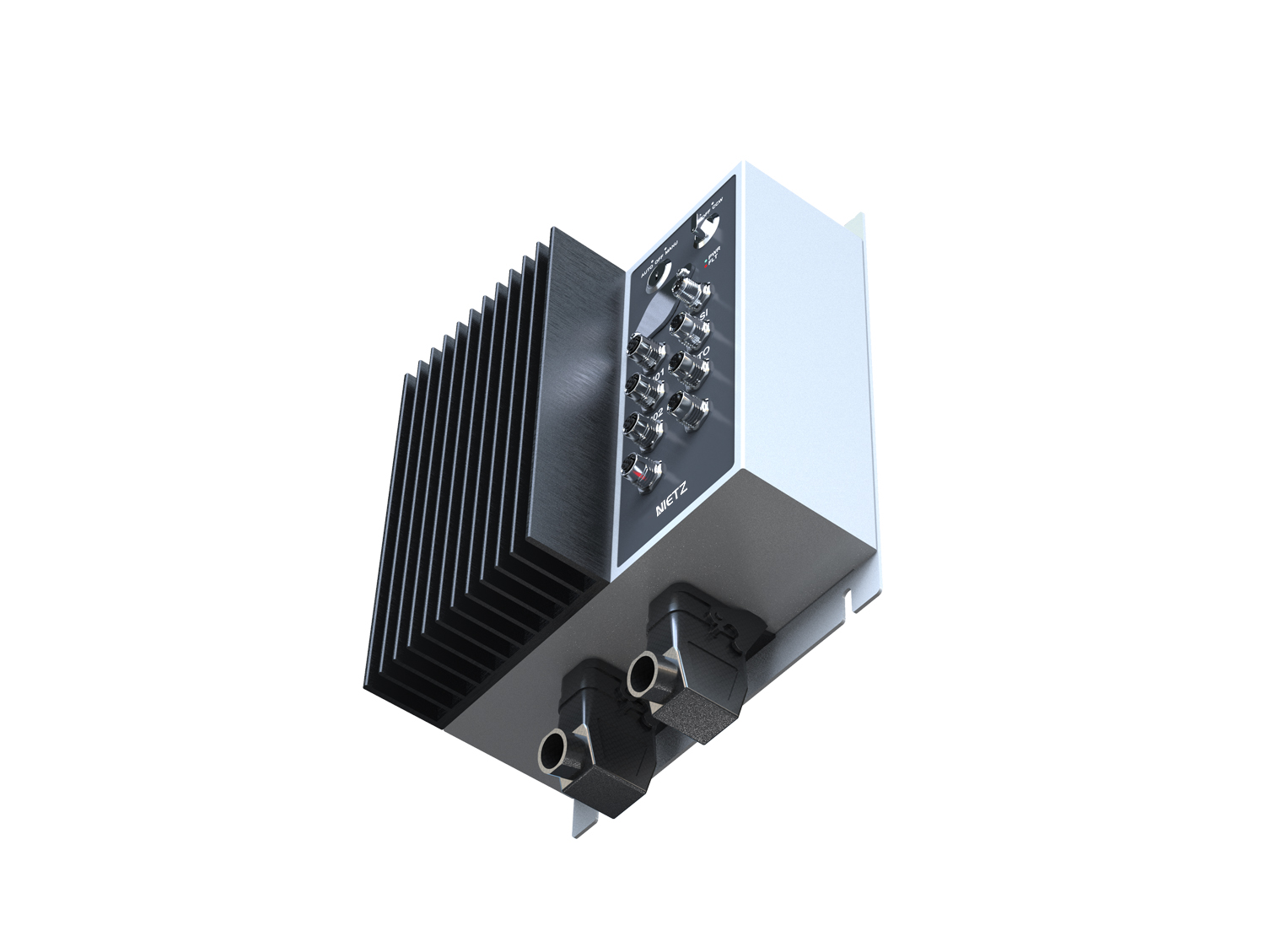

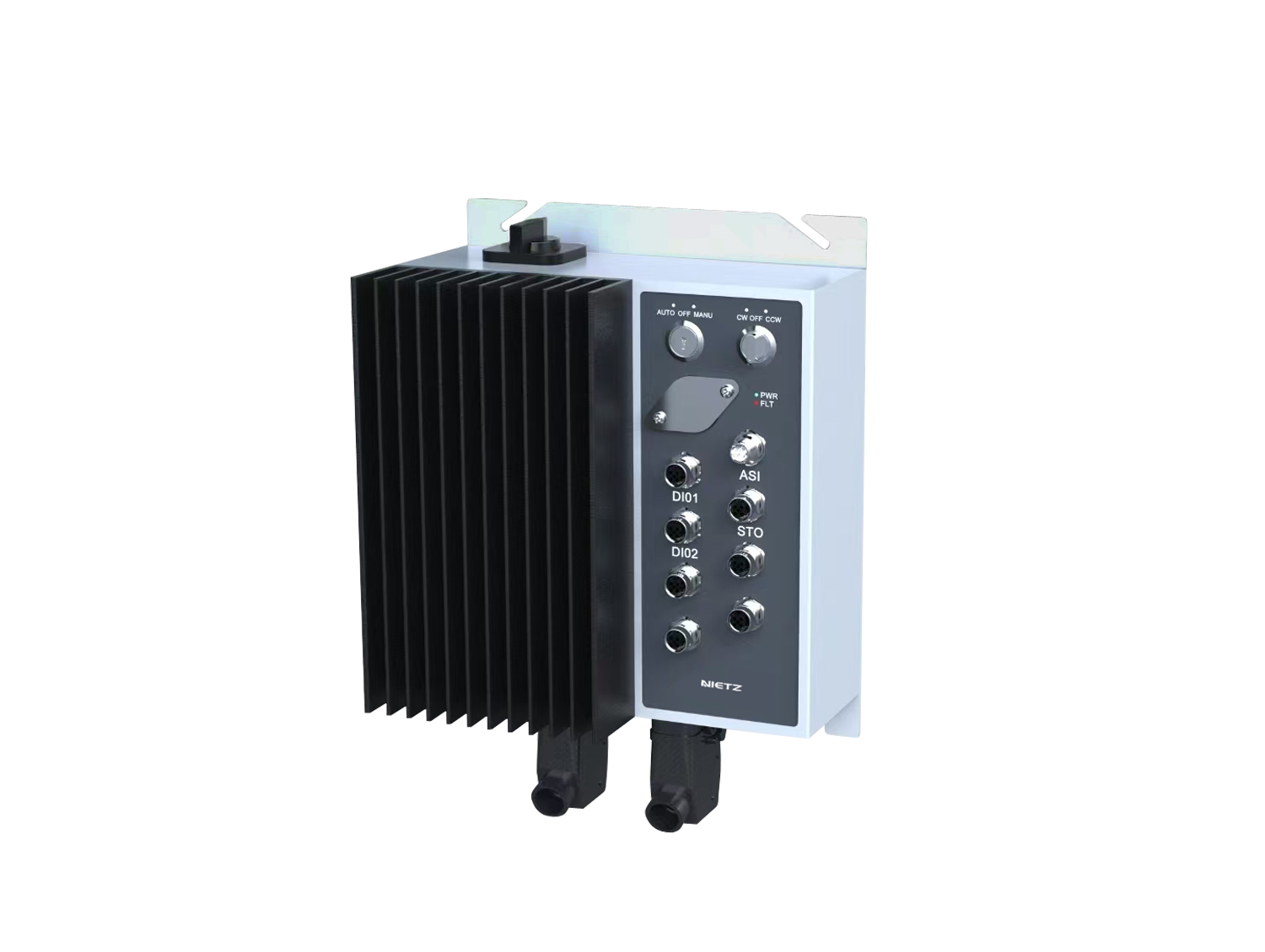

Basic

Functions

Control method

V/F control

Open-loop vector control (no PG)

Maximum frequency

0～599Hz

Input Voltage

AC380V～500V±10%

Carrier frequency

0.5kHz～16kHz

The carrier frequency can be automatically adjusted according to the load characteristics.

Input frequency resolution

0.01Hz

Starting torque

0.5Hz/150%（no PG）；

Speed range

1:100

Steady speed accuracy

±0.5%

Overload capacity

150% rated current60s；200% rated current3.5s。

Torque boost

Self-torque boost; Manual torque boost 0.1%～30.0%

V/F curve

Three modes: linear type; multi-point type; N-power type V/F curve

(1.2 power, 1.4 power, 1.6 power, 1.8 power, 2 power)

V/F separation

2 methods: full separation, semi-separation

Acceleration and deceleration curve

Straight or S-curve acceleration and deceleration mode. Four acceleration and deceleration times, acceleration and deceleration time range 0.0～6500.0s

DC braking

DC braking frequency: 0.00Hz~maximum frequency Braking time: 0.0s~36.0s Braking action current value: 0.0%~100.0%

Jog control

Jog frequency range: 0.00Hz～50.00Hz. Jog acceleration/deceleration time: 0.0s～6500.0s.

Simple PLC,

Multi-speed operation

Achieve up to 4 speeds through built-in PLC or control terminals

Built-in PID

It is easy to realize the closed-loop control system of process control

Automatic voltage regulation AVR）

When the grid voltage changes, it can automatically keep the output voltage constant

Overpressure and overcurrent speed control

Automatically limit current and voltage during operation to prevent frequent over-current and over-voltage tripping

Fast current limiting function

Minimize overcurrent faults and protect the normal operation of the inverter

Torque limitation and control

Automatically limit the torque during operation to prevent frequent overcurrent tripping; closed-loop vector mode can achieve torque control

Personalisation

functions

Excellent performance

Asynchronous motor control with high-performance current vector control technology

Power outage Non-stop

During a momentary power outage, the load feedback energy compensates for the voltage drop, allowing the inverter to continue running for a short period of time.

Fast current limiting

Avoid frequent overcurrent faults in inverters

Timing control

Timing control function: set time range 0.0min～6500.0min

Communication method support

ASI, Profinet

Operation Control

Command source

Operation panel setting, control terminal setting, ASI communication setting

Frequency Source

Digital setting, ASI setting. Switchable

Auxiliary frequency source

Flexible auxiliary frequency fine-tuning and frequency synthesis

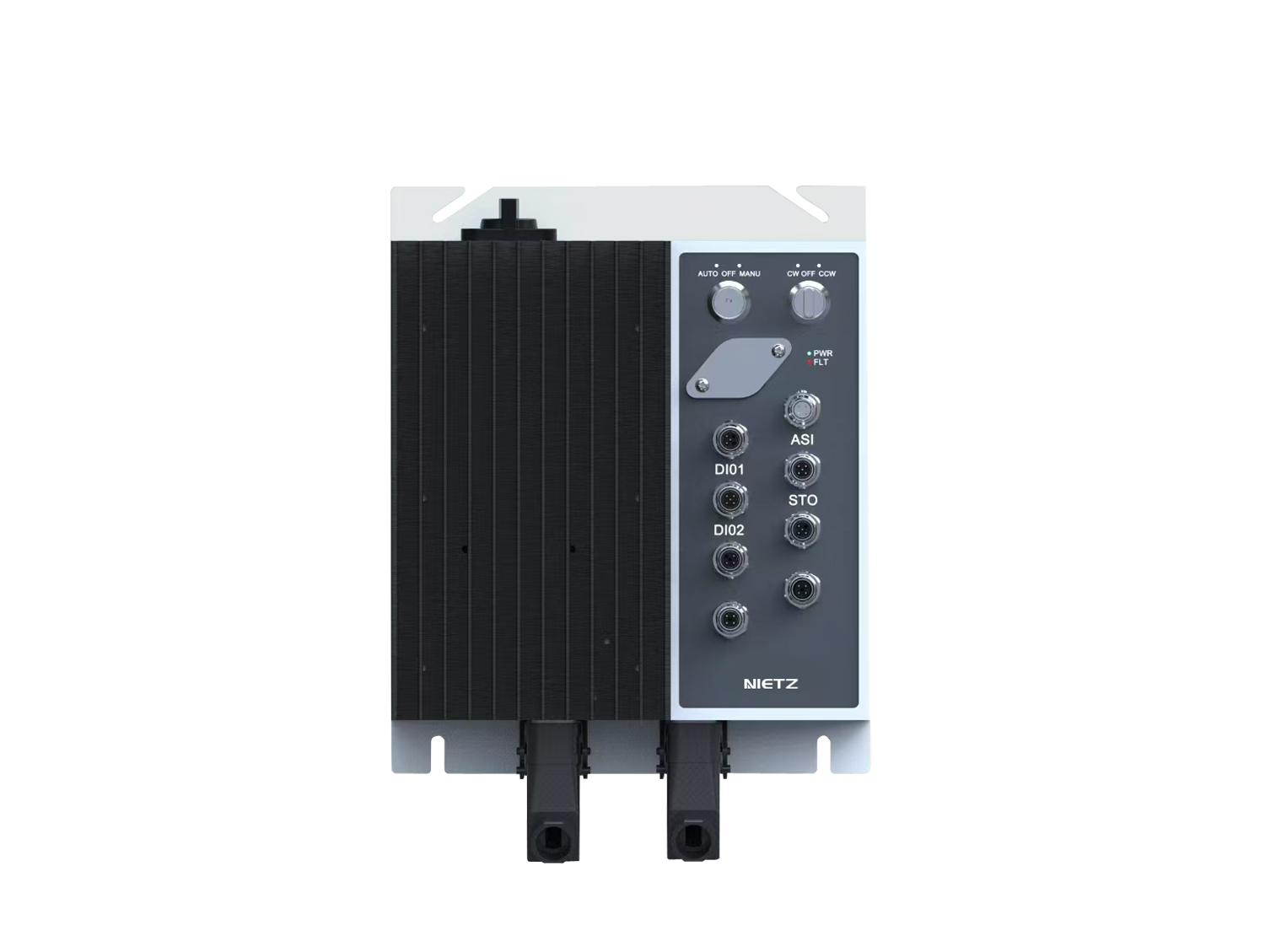

Input Terminals

2 digital input terminals

1 STO terminal

1 motor temperature input terminal (TF/PT100/PT1000 optional)

Display and protection configuration

LED display

Display parameters

Protection function

Power-on motor short circuit detection, input and output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, overload protection, etc.

EMC filter

Built-in, C3 level

Braking resistor

Built-in, specification 250W 200Ω

Place of use

Indoors, away from direct sunlight, dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt, etc.

Environmental conditions

Altitude

Less than 1000m

Ambient temperature

－25℃～＋40℃ (When the ambient temperature is 40℃～50℃, please use it at a reduced rating)

Humidity

Less than 95% RH, no condensation

Vibration

Less than 5.9m/s2（0.6g）

Storage temperature

－20℃～＋60℃

Protection level

IP65
