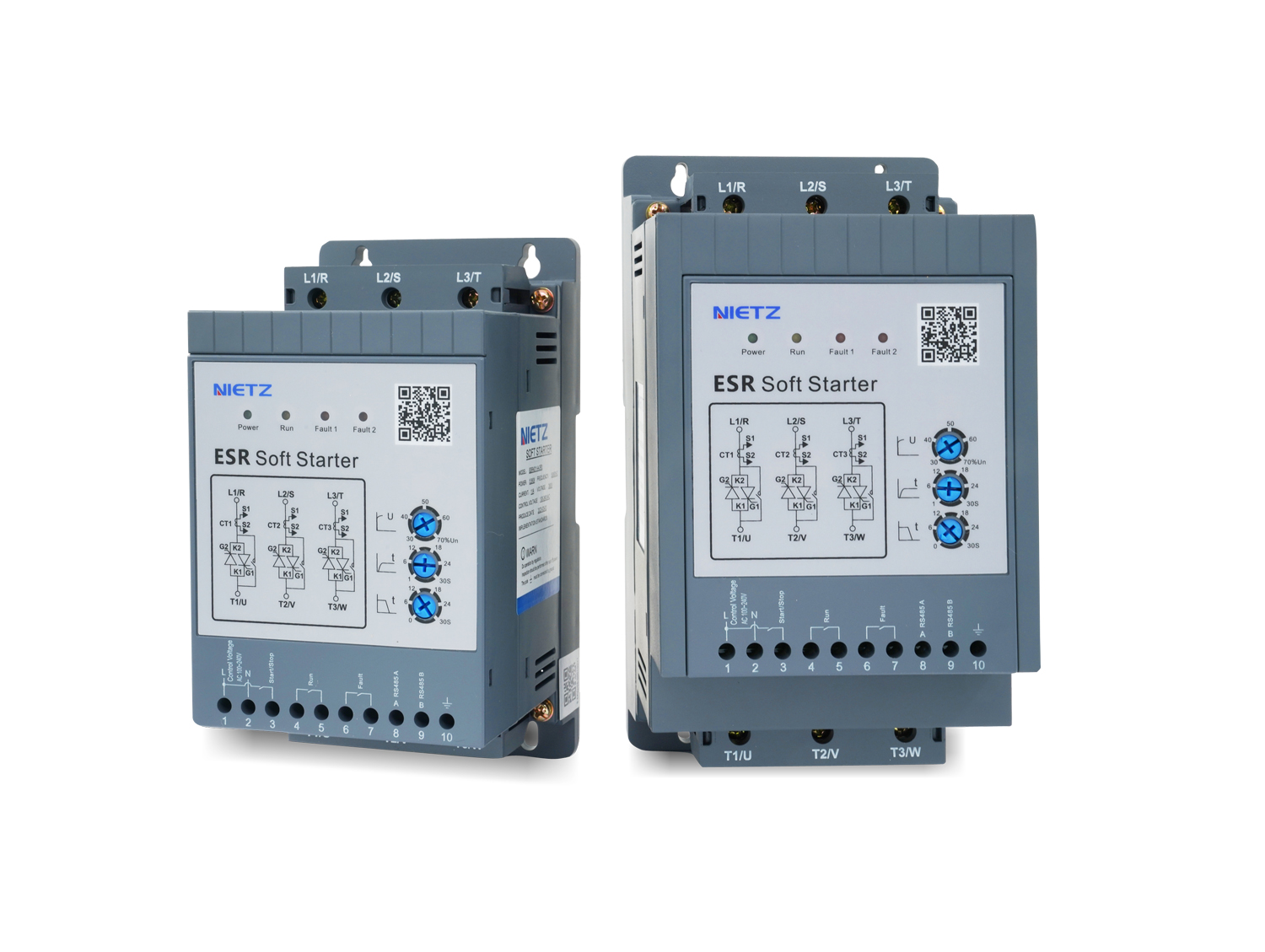

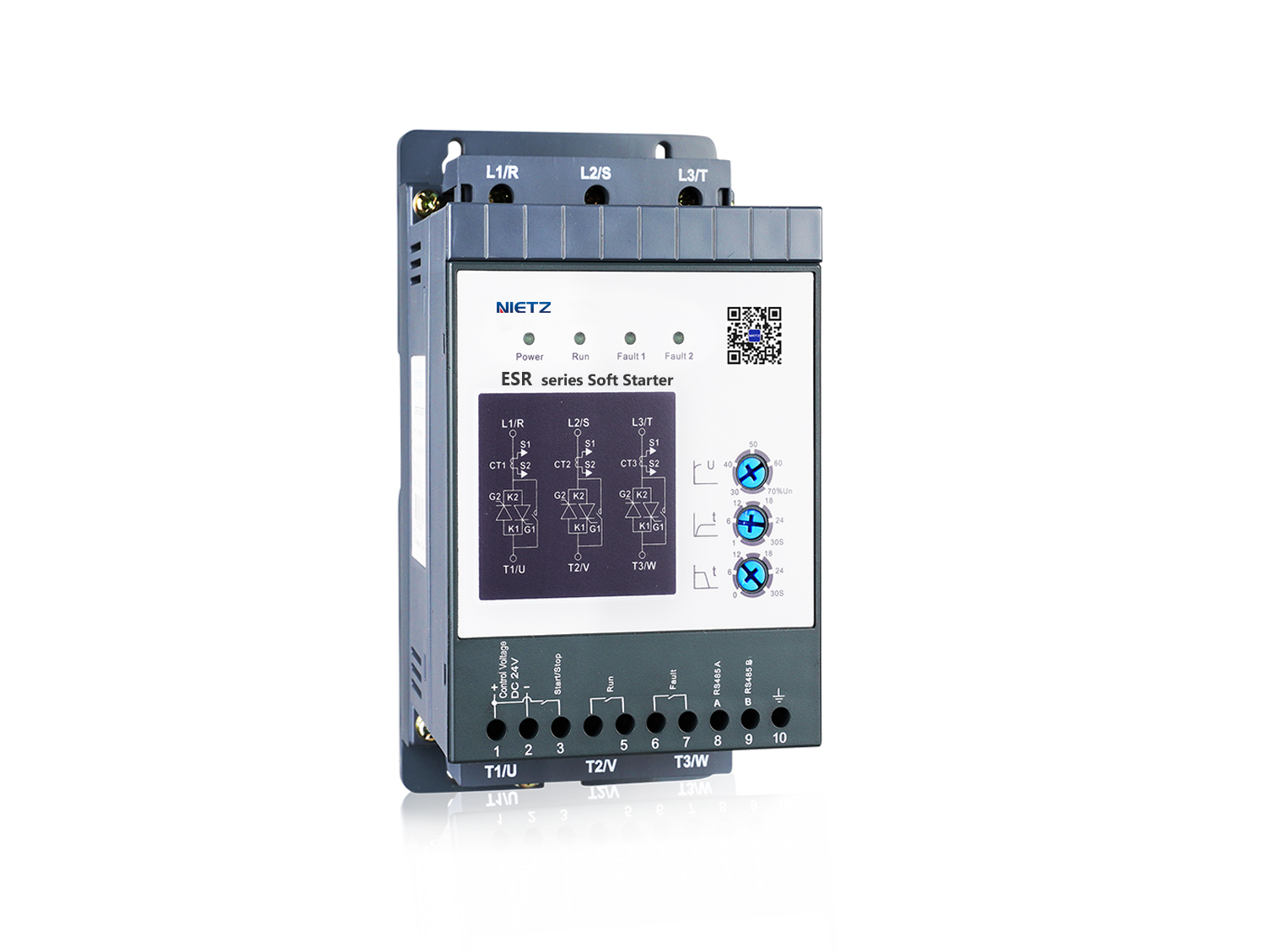

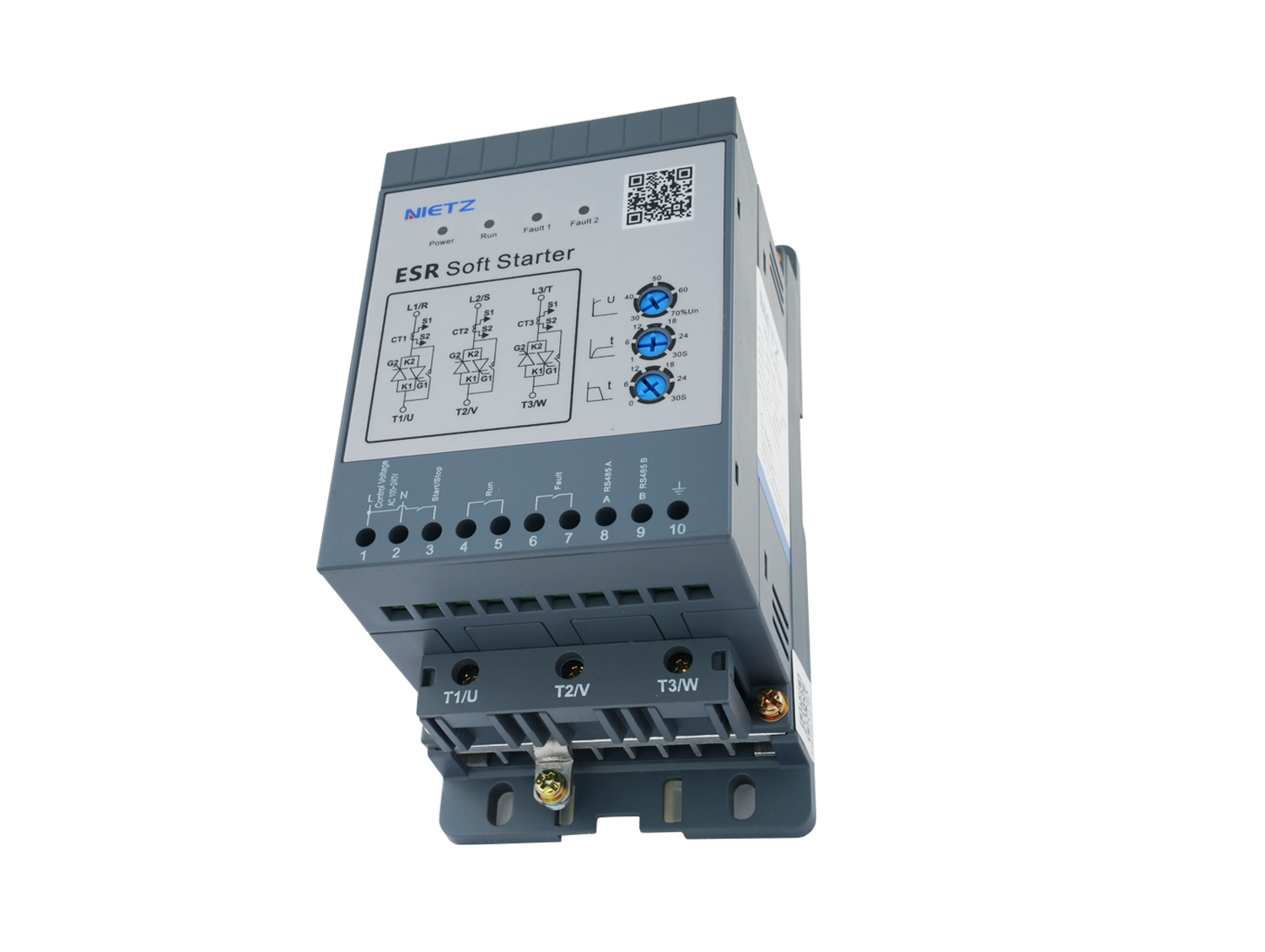

ESR Soft Starters-Simple & Compact
ESR Soft Starters-Simple & Compact
ESR Soft Starters-Simple & Compact
AT20-2
ESR2
ESR3
ESR Soft Starters-Simple & Compact

The ESR Soft Starter provides a cost effective solution for small to medium size motors. It is designed with a simple interface for easy installation, Compact & Easy to Install; Built-in Bypass, motor protection and standard Modbus communication protocol that allows for remote monitoring giving the user a reduction of downtime and improved productivity; ESR series is perfect replacement for ABB, Schneider, Delta, AuCom and etc.

Specifications
ItemSpecification
Rated Main  Voltage:200-525VAC 50/60Hz
Control  Source Voltage100~240VAC 24VDC
Rated Main  Current1.5A……150A
Power Range1.1~75 kW
Initial  voltage30%~70%
Start Slope1~30 Sec
Stop Slope0~30 Sec
BypassBuilt in
CommunicationRS-485 (optional card)
Overload3xIe 7 Sec; Valid for 50 % on time and 50 %  off time
Times of  start per hour<5, 5-10 (light  load or no-load)
Overload grade:10A
Operation  Environmental temperature0 ℃ to + 50 ℃  (32 ºF to 122 ºF)
Store  temperature-40 ℃ to + 70 ℃ (-40 ºF to 158 ºF)
Maximum  altitude1000m (3280 ft)
Ingress  Protection gradeIP21
