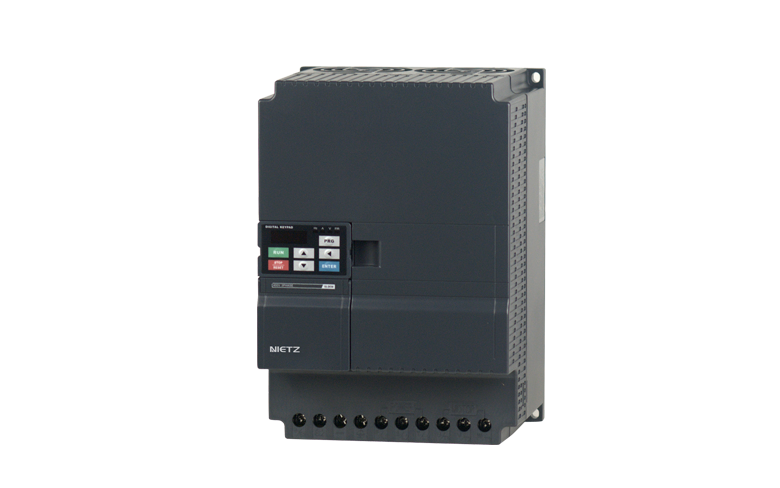

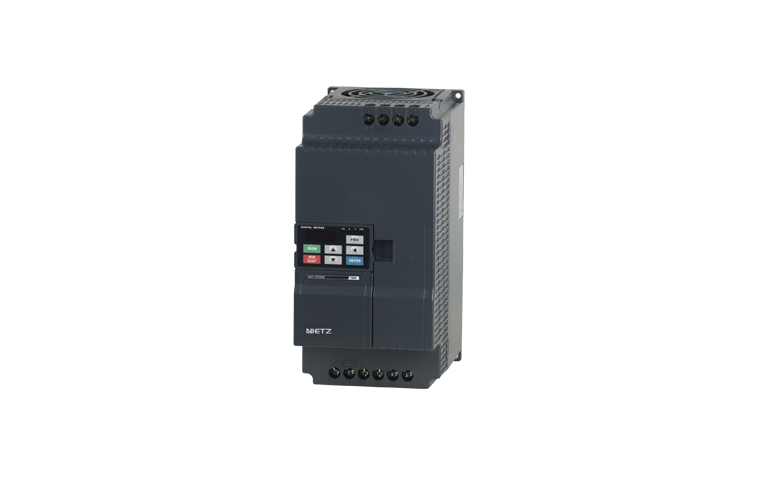

NZ2000 Series Sensorless Vector AC Drive
NZ2000 Series Sensorless Vector AC Drive
NZ2000 Series Sensorless Vector AC Drive
NZ2000 1
NZ2000 2
NZ2000 3
NZ2000 Series Sensorless Vector AC Drive

NZ2000  Series compact sensorless vector drive- Overload capacity is 150%(100%)  of the rated current, 3s for 180% of the rated current; There are ten  auxiliary frequency sources.It can implement fine tuning of auxiliary  frequency and frequency synthesis. Two types of  control mode:  Sensorless flux vector control (VC), V/F(Voltage/Frequency) control;
Input Voltage: 110V / 220V / 380-480V;
Power range: 0.4kw ~ 450 kW






Specifications
ItemNZ2000
Standard functionsControl modeV/F(Voltage / Frequency) control
Sensorless flux vector control  (VC)
Maximum frequencyVector control: 0–320 Hz
V/F control: 0–3200Hz
Carrier frequency1.0–16.0 kHz
The carrier frequency is  automatically adjusted based on the load features.
Input frequency esolutionDgital setting: 0.01 Hz
Analog setting: 0.025% of  maximum frequency
Startup torqueG type: 0.5 Hz/150% (VC);
P type: 0.5 Hz/100% (VC)
Speed range1:100 (VC)
Speed stability accuracy± 0.2% (VC)
Torque control accuracy± 20%
Overload capacityG type: 60s for 150% of the rated current, 3s for 180% of the  rated current.
P type: 60s for 120% of the  rated current, 3s for 150% of the rated current.
Torque boostAuto boost
Customized boost 0.1%–30.0%
V/F  curveLine V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power,  1.4-power, 1.6-power,1.8-power, square)
V/F separationTwo types: complete separation; half separation
Ramp modeStraight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
DC brakingDC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0–100.0s
Braking action current value:  0.0%–100.0%
JOG controlJOG frequency range: 0.00–50.00 Hz
JOG acceleration/deceleration  time: 0.0–6500.0s
Onboard multiple preset speedsIt implements up to 16 speeds via the simple PLC function or  combination of terminal states
Onboard PIDIt realizes process-controlled closed loop control system easily.
Auto voltage regulation (AVR)It can keep constant output voltage automatically when the mains  voltage changes.
Overvoltage/ Overcurrent stall  controlThe current and voltage are limited automatically during the  running process so as to avoid frequent tripping due to overvoltage/over  current.
Torque limit and controlIt can limit the torque automatically and prevent frequent over  current tripping during the running process.
Power dip ride throughThe load feedback energy compensates the voltage reduction so that  the AC drive can continue to run for a short time.
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
High performanceControl of asynchronous motor are implemented through the  high-performance current vector control technology.
Timing controlTime range: 0.0–6500.0 minutes
Communication methodsRS485 (MODBUS-RTU)
Protection modeMotor short-circuit detection at power-on, input/output phase loss  protection, over current protection, overvoltage protection, under voltage  protection, overheat protection and overload protection.
Input and outputInput terminal6 digital input terminals, one of which supports up to 100 kHz  high-speed pulse input.
2 analog input terminals, one of which only  supports 0–10 V voltage input and the other supports 0–10 V voltage input or  4–20 mA current input.
Frequency sourceDigital setting, analog voltage setting, analog current setting,  pulse setting and serial communication port setting.
Auxiliary frequency sourceThere are ten auxiliary frequency sources.It can implement fine  tuning of auxiliary frequency and frequency synthesis.
Running command sourceOperation panel/Control terminals/Serial communication port
You can perform switchover between these  sources in various ways.
Output terminal1 digital output terminal
1 relay output terminal
1 analog output  terminal :that supports 0–20 mA current output or 0–10 V voltage output
operation on the operation panelLED displayIt displays the parameters.
Key locking and function  selectionIt can lock the keys partially or completely and define the  function range of some keys so as to prevent mis-function.
EnvironmentInstallation locationIndoor, free from direct sunlight, dust, corrosive gas,combustible  gas, oil smoke, vapour, drip or salt.
AltitudeLower than 1000 m
Ambient temperature-10°C ~40°C (de-rated if the ambient temperature is between 40°C and 50°C)
HumidityLess than 95%RH, without condensing
VibrationLess than 5.9 m/s2 (0.6 g)
Storage temperature-20°C~60°C
