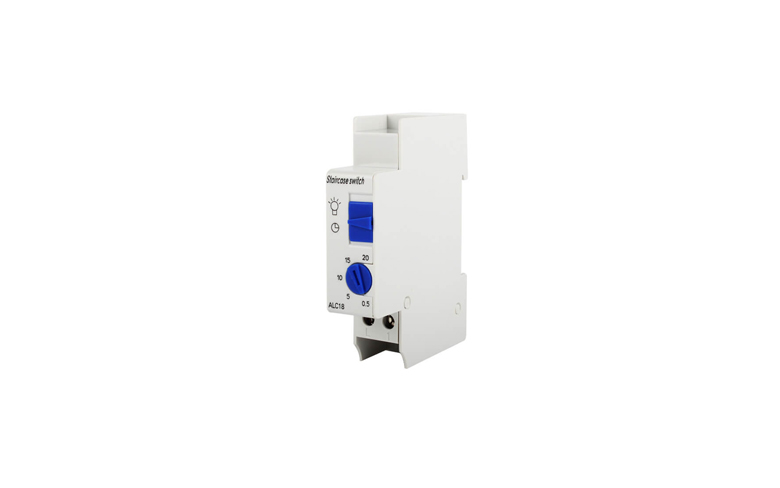

Staircase timer switches not only automatically delay the switching off of lights, but also allow for adjustable delay times, thus achieving energy-saving efficiency.
Staircase switches automatically switch lamps off after an adjustable period of time and are mainly used in stairways, basements, corridors, elevators and lobbies.
Countdown period: 30s~20m
0~20m: +/- 150s
0~30s: +/- 3s
Toggle switch for permanent light
External push switch control
EXTRA FUNCTION for ALC18-E:
Input with electronic overload protection
Connected glow lamp in parallel
Glow lamp load: 150mA Max
| Voltage | 230Vac |
| Frequency | 50Hz |
| Switching capacity | 16A |
Maximum Recommended Load (10,000 operations)
| Incandescent/halogen lamp load 230V | Fluorescent lamp load (conventional) lead-lag circuit | Fluorescent lamp load (conventional) parallel-corrected | Energy-saving lamps | LED lamp < 2 W | LED lamp 2–8 W | LED lamp > 8 W |
| 2300 W | 2300 W | 400 VA 42 μF | 90 W | 20 W | 55 W | 70 W |
Technical Data
| Fluorescent lamp load (electronic ballast) | 350 W |
| 1/2- way conducctors | Automatic |
| Switching output | Potential-free and phase-independent |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Consumed power | 4 VA |
| Type of protection | IP 20 |
| Class of protection | II according to EN 60 730-1 |
| Permitted ambient temperature | -10 ~ +50 °C (non-icing） |
Public gardens, irrigation system Commercial building, industrial-building
