EC1616DN(P) I/O Statioin Digital - EtherCAT-Nietz Electric Co.,Ltd

EC3200D I/O Statioin Digital - EtherCAT

A compact I/O station typically refers to fixed-form-factor or ultra-slim block modules designed to save cabinet space (IP20); Integrated coupler and I/O modules.
Reduced Wiring: Centralizes local signals at the machine level, drastically cutting down long cable runs back to the main controller.
Space-Saving Design: Combines communication and signal processing into compact footprints, ideal for tight control cabinets.
Flexible Scalability: Allows you to add or swap digital and analog modules easily without rewiring the entire node.
Faster Installation: Utilizes modular architectures and push-in terminals to cut assembly and setup time in half.
Better Diagnostics: Provides channel-specific LED indicators and integrated web servers for real-time remote troubleshooting and maintenance.

Protocol Support EtherCAT

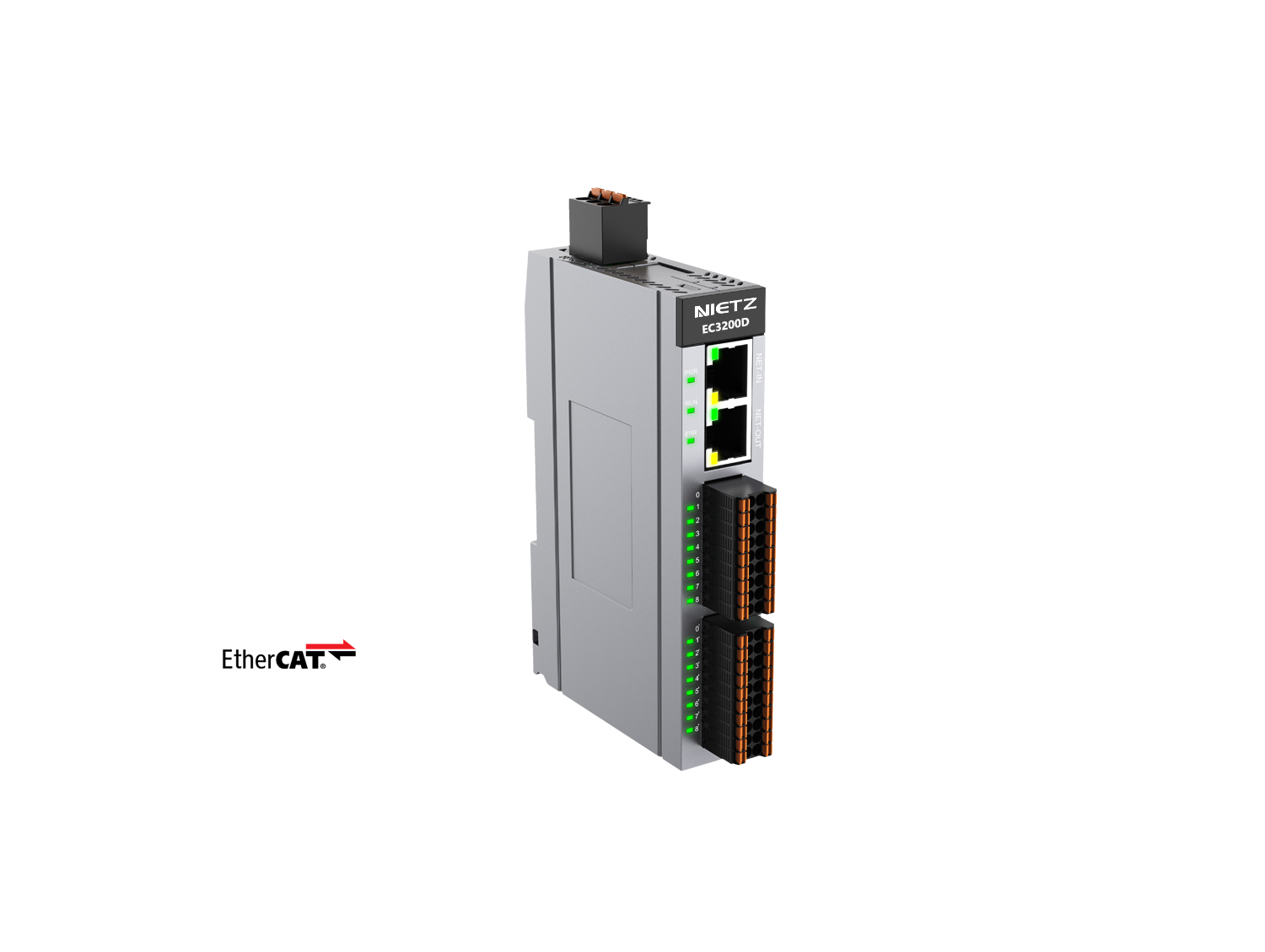

EC3200D I/O Statioin 32 digital input, 0 digital output, digital input NPN / PNP universal ;

info@nietz.cn +86 13764513349 Inquiry

Features

Compact Vertical Design

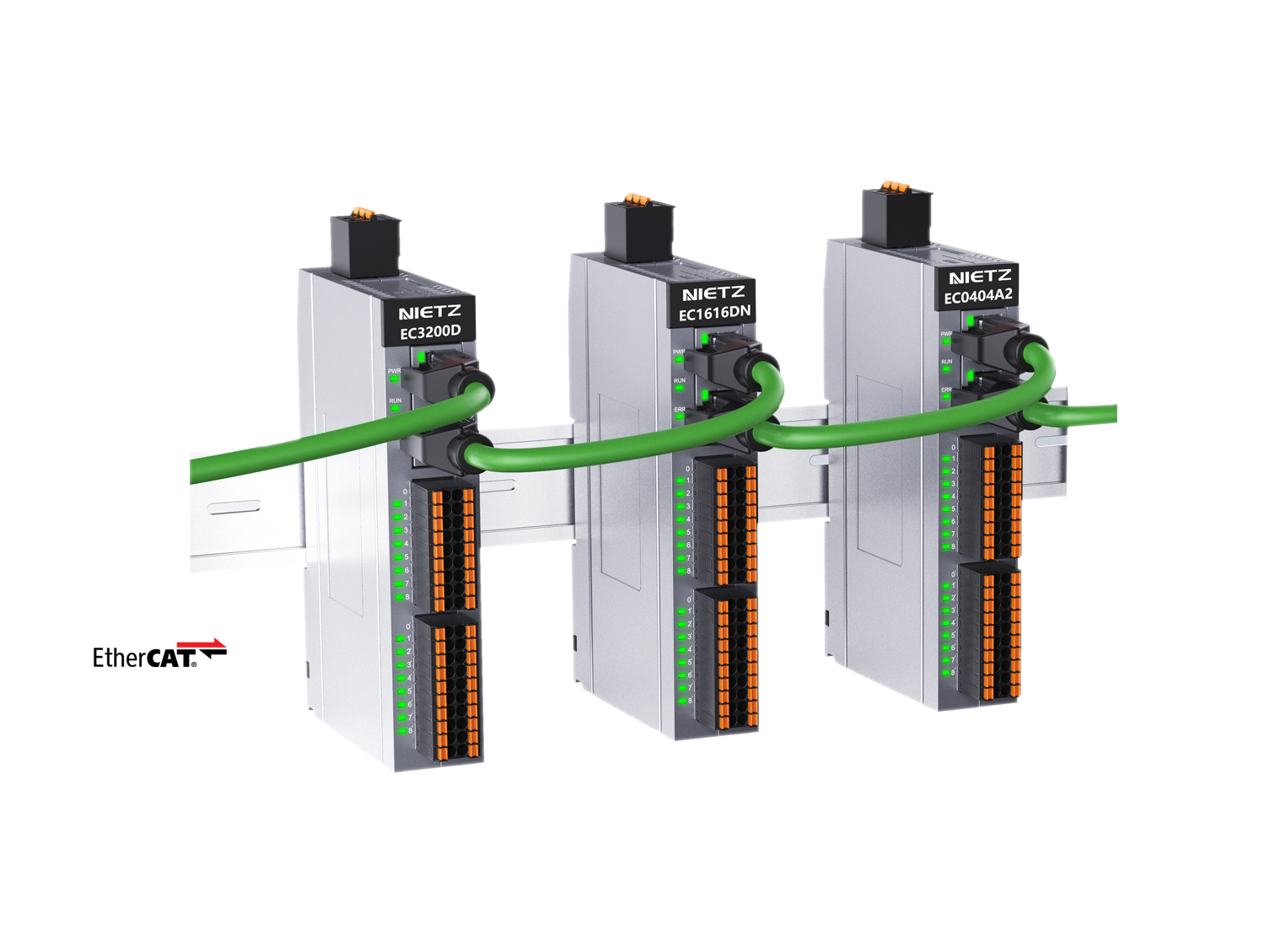

Featuring an innovative vertical structure, each unit measures just 25mm in width and 77mm in height. This enables high-density deployment within limited control cabinet space, effectively maximizing space utilization—making it ideal for industrial equipment and system integration projects with strict installation dimension requirements.

Cost-Effective and Versatile

Delivers high performance while significantly reducing procurement costs for users. The comprehensive product lineup includes dedicated digital I/O modules and dedicated analog I/O modules, eliminating the need for external bus couplers.

High-Speed Communication for Real-Time Data Transfer

Utilizes the standard EtherCAT bus protocol to deliver exceptional communication performance. It supports a minimum communication cycle time of 250μs and features 250μs filtering, ensuring stable and real-time data transmission.

Comprehensive Product Range

The current portfolio includes dedicated digital I/O modules and dedicated analog I/O modules that do not require external bus couplers, allowing users to select the specific modules that meet their needs.

Specifications

General Feature

Protocol	EtherCAT
Power	24VDC (20.4~28.8VDC) -15%, +20%
Data Transfer Medium	CAT5 Ethernet / EtherCAT cable
Bus Interface	2*RJ45
Data Transfer Rates	100Mb/s
Distance Between Stations	≤100m
Operation Temperature	-20℃ ~ +60 ℃
Storage Temperature	-25℃ ~ +75 ℃
Dimension	124x77x25mm
Protective Class	IP20

Digital Input

PNP/NPN Selection	Select by Order
Input connect type	Spring terminal
Input method	Source/Sink Compatible
Input Voltage	24VDC (Max.30VDC)
Input Current	4~20mA
On Voltage	7V~30V
Off Voltage	-3V~+3V
Input reactance	4.3%
Isolation Type	Optocoupler isolation, 3000V
Input action indication	The indicator light turns on when the input is driven
Min. Switch Frequency	0.25ms
Filtering Time	3ms default, settable 0-100ms.

Digital Output

Output Signal type	NPN or PNP
Input connect type	Spring terminal
Output Voltage	24VDC (-15%, +20%)
Max. off-state leakage current	<0.5mA
Resistance load	0.5A/port; 2A / Common port
Inductive load	12W/24VDC ( Total)
Light load	2W/24VDC ( Total)
Isolation type	Optocoupler isolation, 3000V
Output action indication	LED indicator; Optocoupler drive
Output short-circuit protection	Have

EC3200D

Models	EC3200D
Input	32 Digital Input
Output	0 Digital Output
Input Signal	NPN / PNP universal
