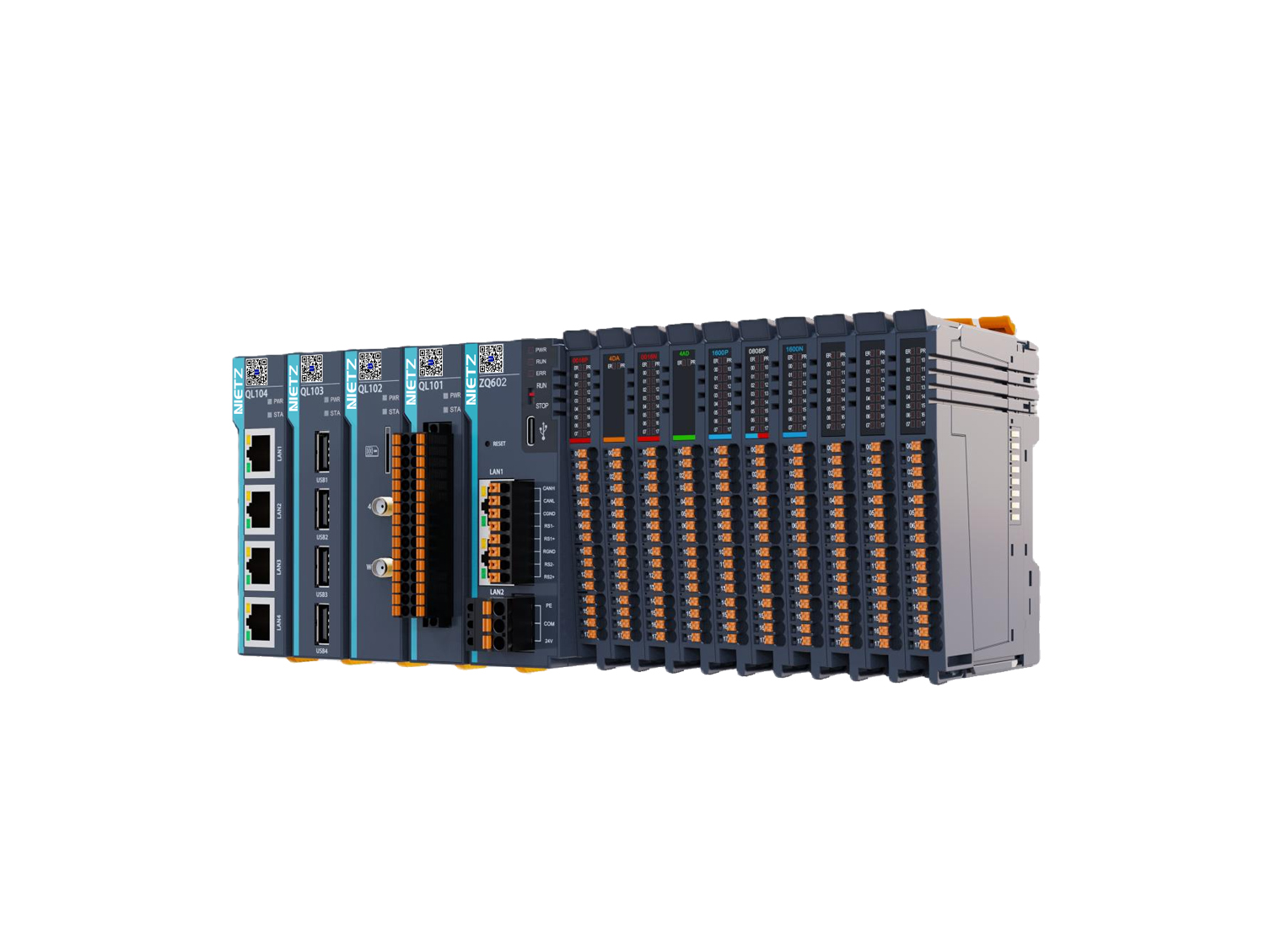

Advantage of ZQ600 series

Powerful software and hardware configuration

● Dual-core processor, 1.4GHz main frequency, nanosecond instruction processing speed

● 128M Byte program capacity, 128M Byte data capacity (1M Byte supports power-off retention variables and 64K M device power-off retention)

● The main unit can be expanded to 32 QY20 series IO modules, supporting DI, DO, AD, DA, PT, and TC. Data can be saved even when power is off without the need for an external UPS module.

Rich communication interfaces

● Supports two Ethernet ports, LAN1 supports configuration as EtherCAT; EtherCAT supports up to 32 axis control and can connect 256 EtherCAT slaves. LAN2 supports ProfiNET master, LAN1 and LAN2 both support 63 Modbus TCP slaves and 16 OPC UA session (client) connections; LAN1 and LAN2 both support EtherNET/IP master and slave

● Supports 2-way RS485 communication (both master and slave modes), 1-way CAN communication, and supports 127 slaves when used as a CANopen master; supports CAN free protocol

● Support USB download monitoring program and firmware upgrade function

Flexible and comprehensive performance

● 1ms cycle 8-axis synchronous control supports up to 64 axes

● The entire series supports EtherCAT linear, star, and ring network topologies. Through expansion modules, branch integration can be achieved
