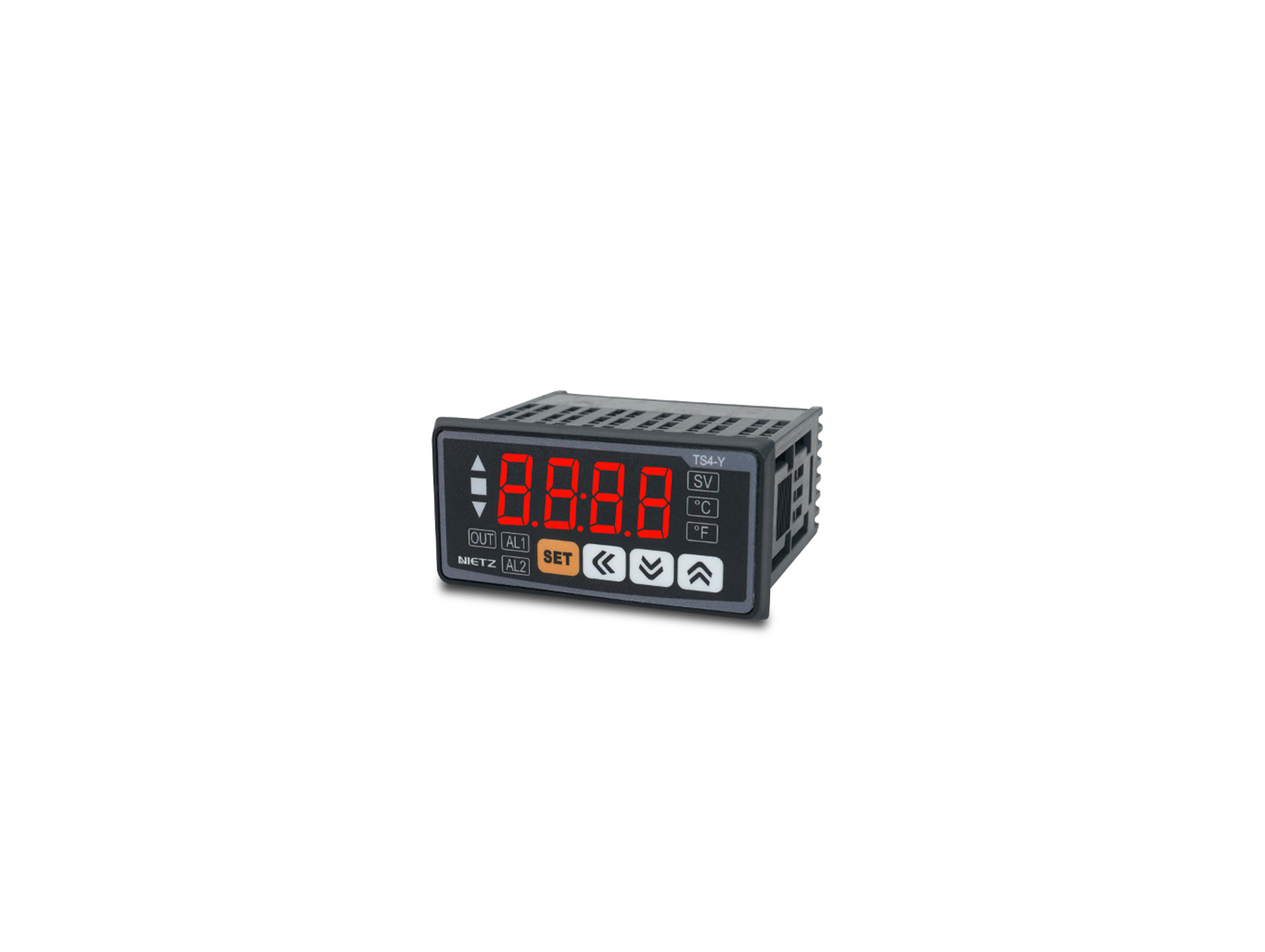

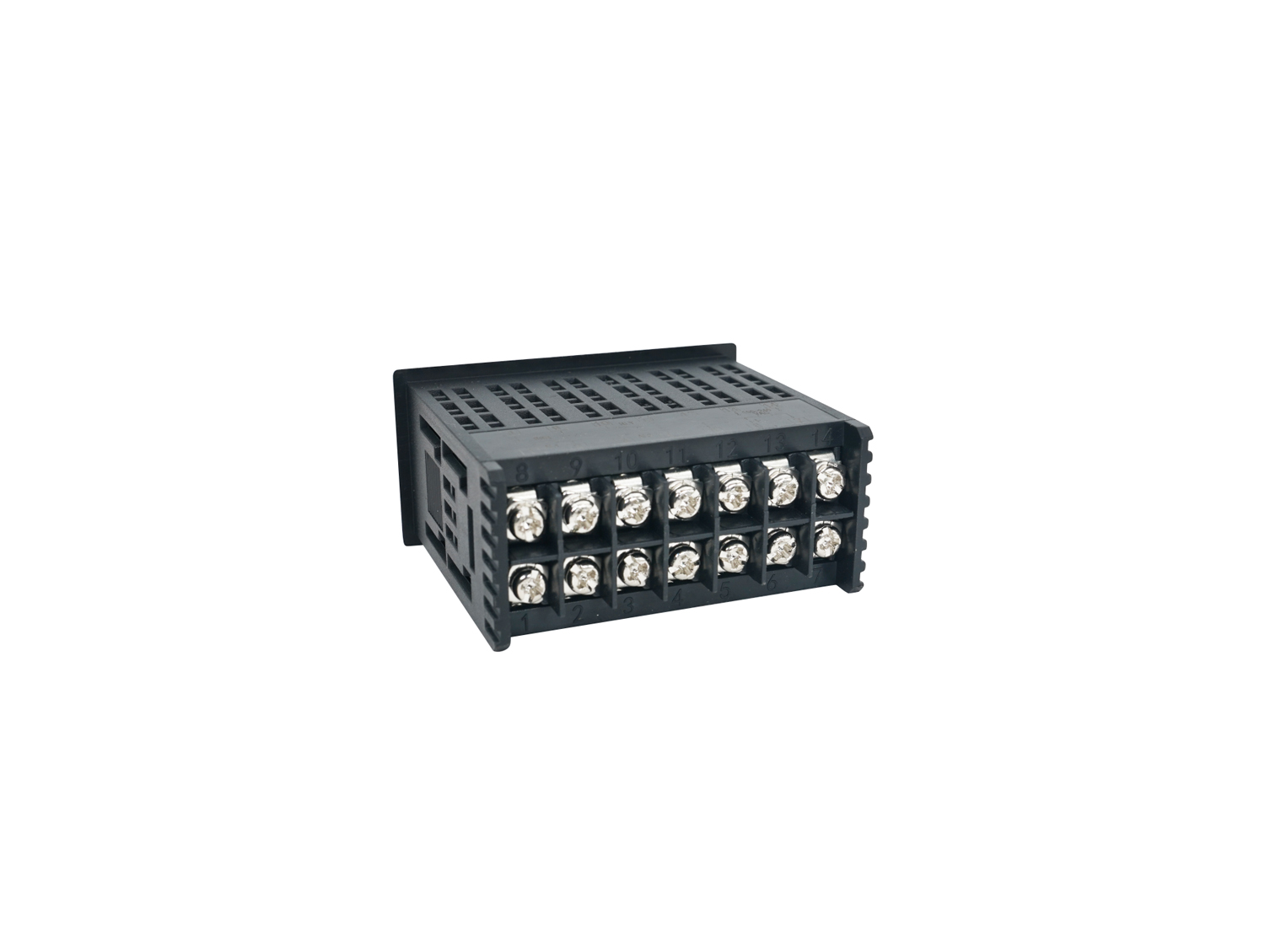

TS4-Y series Economical Single Display Temperature Controllers
TS4-Y series Economical Single Display Temperature Controllers
Y1
Y2
TS4-Y series Economical Single Display Temperature Controllers

By adopting the newly developed PID control algorithm and 100ms high-speed sampling function, ideal temperature control can be achieved.

Features
  • Simultaneously built-in Relay output and SSR output.

  • Universal input K, J, L, Cu50, PT100; 2 chanel Alarm.

  • Adopting a small-sized display screen and compact design, saving installation space. 38% reduction compared to traditional products.

  • Temperature setting SV as the reference, displaying the deviation function of the current temperature PV.

Specifications

Series

TS4-Y

Supply Voltage

100-240 VAC  50/60Hz

Allowable Voltage Variation Range

90-110% of the power supply voltage

Power Consumption

AC ≤5  VA

Sampling Period

100 ms

Enter Specifications

Refer to " Input specification and Scope of  Use"

Control Output

Relay

250 VAC 3A, 30 VDC 3A, 1a

SSR

12 VDC +/-2V, ≤20mA

Alarm In

250 VAC 1A 1a

Display Mode

7-segment ( red, green, yellow), LED mode

Control Mode

Heating & Cooling

ON/OFF, P, PI, PD, PID

Lag

1 to 100 (0.1 to 50 50.0) ℃/℉

Proportional Bandwidth (P)

0.1 to 999.9 ℃/℉

Integral Time (I)

0 to 9999 sec

Derivative Time (D)

0 to 9999 sec

Control Cycle (T)

0.5 to 120.0 sec

Manual Reset Value

0.0 to 100%

Relay Lifespan

Mechinery

Out 1/2, AL1/2: ≥5 milliion times

Electrical

Out 1/2, ≥200 000 times (resistive load: 250 VAC, 3A)
AL 1/2, ≥300 000 times (resistive load: 250 VAC, 1A)

Withstanding Voltage

Betwenn the charging unit & the casing: 1000 VAC  50/60 Hz 1 min

Vibration

5-55 Hz amplitude 0.75 mm X, Y, Z direction 2 hours
