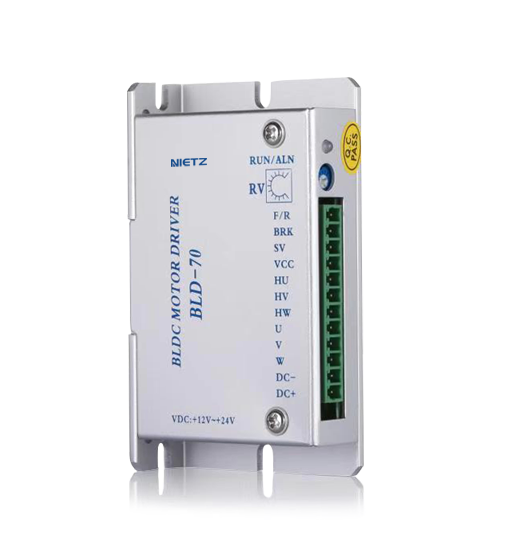

BLD-70 inside

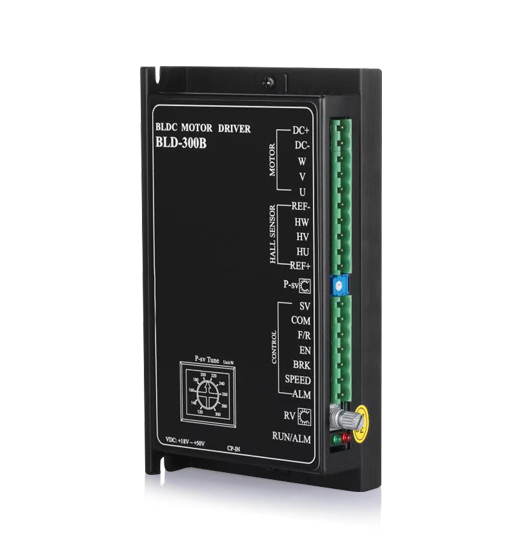

BLD-300B inside-Eng
BLD120A Drive
Brushless DC Drives 12-48V, 220V

These brushless DC drives are based on advanced control technology that features excellent performance and ease of use. The drives are aimed at applications requiring high performance, high speed stability, basic velocity control, simple setup and low cost in a compact design.

Features

These brushless DC drives are based on advanced control technology that features excellent performance and ease of use. The drives are aimed at applications requiring high performance, high speed stability, basic velocity control, simple setup and low cost in a compact design.

  • High cost-effective DC brushless motor driver

  • Adaptation 15-750W DC brushless motor

  • Maximum peak current output up to 12A or more

  • Potentiometer speed control, analog speed regulation, pulsed speed multi-mode optional

  • With overcurrent, overvoltage, undervoltage, Hall error protection

Specifications
Main Technical Specification
Models Peak current,A Rated current,AVoltage,Vsize,mmweight,g Adapted motorManuals
BLD7063DC12-3094*56.5*21130<70W

BLD-70.pdf

BLD120A168DC12-3096*60*24.5170<120W

BLD-120A.pdf

BLD300B3515DC12-56143*80*33340<300W

BLD-300B.pdf

BLD7504525DC18-52151*97.5*52600<750W

BLD-750.pdf
