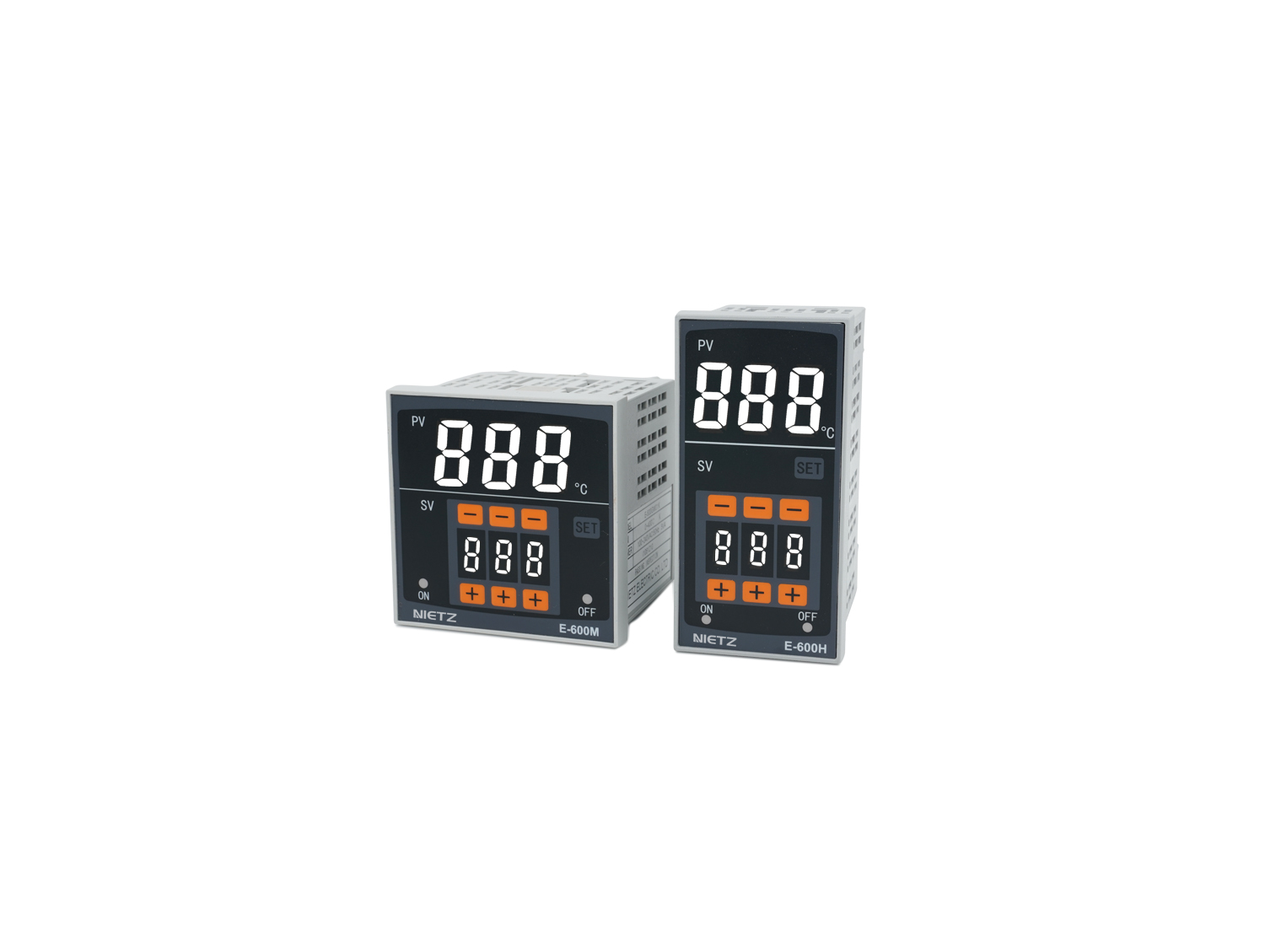

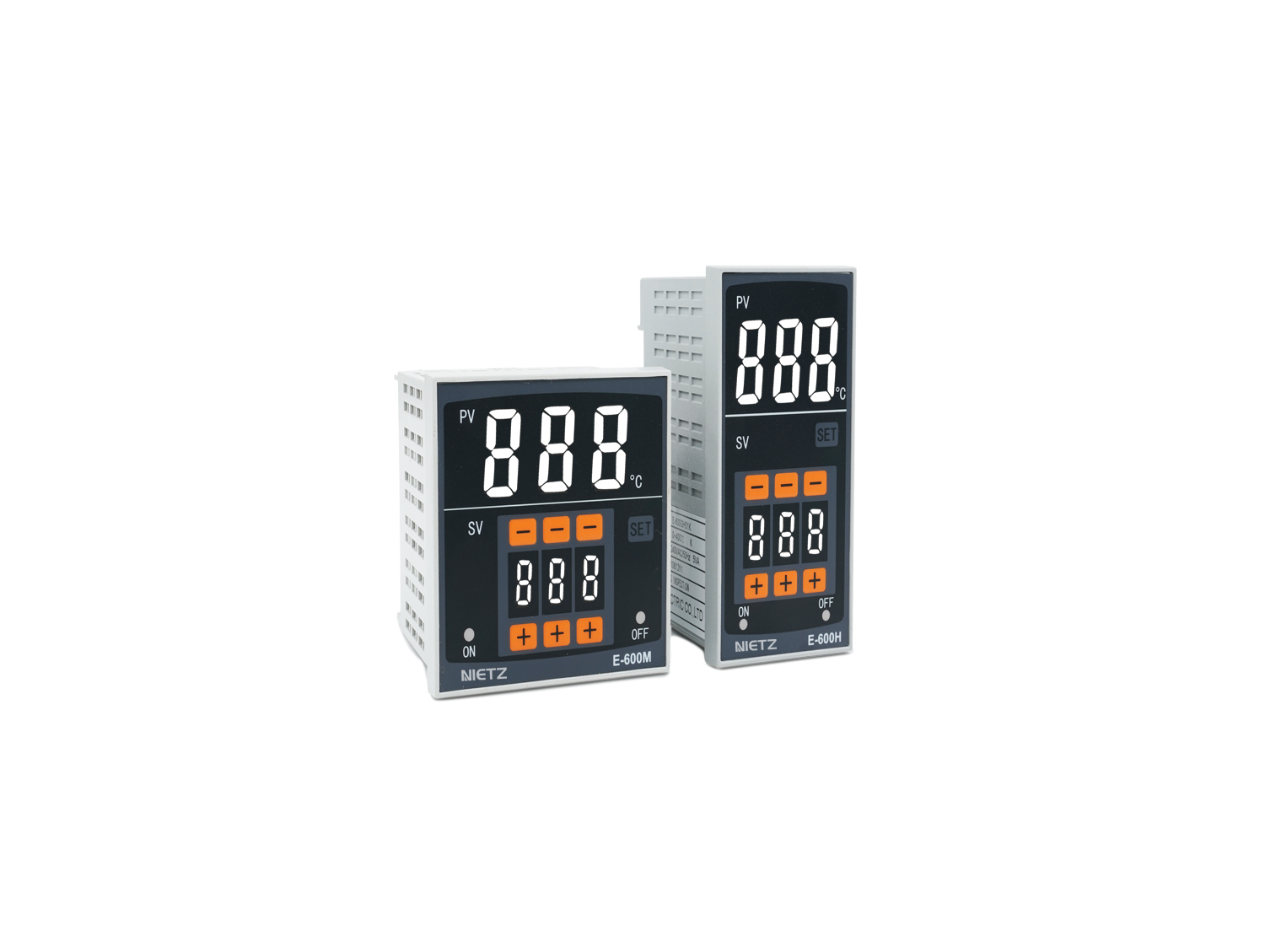

E600 Series Economical Temperature Controllers
E600 Series Economical Temperature Controllers
E600 2
E600 1
E600 Series Economical Temperature Controllers

E600 series dial-type intelligent digital display is intelligent digital display temperature controllers with self-tuning function. This series of thermostats uses a single-chip microcomputer as the control core and adopts SMT patch technology, switching power supply, control parameter self-tuning algorithm, sensor nonlinear transformation, electromagnetic compatibility design, system self-test and other related technologies.

Features

Features:

  • 2 Size : 72×72, W48 (W) x 96(H) mm

  • Good visibility

  • Fewer parameters and simple settings.

  • The sampling time is shortened to 250ms.

  • Insertion depth: 65mm

  • Fuzzy PID control, small temperature overshoot and short heating time.

  • No over-temperature auto-tuning (AT), internal operation, and no overshoot.

  • Input Thermocouple K, J, E or RTD PT100, CU50

  • Output Relay or SSR

  • Power supply : 100-240VAC~ 50/60Hz

Specifications
Size
ModelPanel: H×B(mm)Shell: h×b×L(mm)Hole size: h'×b'(mm)
EM72×7268×68×70(68+1)×(68+1)
EH96×4892×44×70(92+1)×(44+1)


Application

 Sealer
