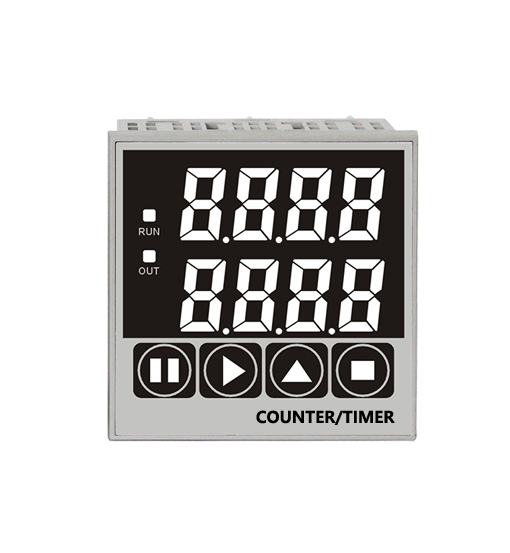

Product Name:Counter & Timer C48L
Category:Sensor, Meter, Controller & Instrumets
 The instrument contains 32 functions, such as single delay, double delay, tired time, frequency, speed, four-digit count, eight-digit count, etc., with various working modes of relays, which fully meet the needs of the control field.
It can be connected to photoelectric pair tube, proximity switch, switch contact, encoder, etc.
The operation value, multiplier A and multiplier B of the relay can be set. The set value, the constant time value and the calculated value will not be lost when the power is lost.

 USER MANUAL
Features
Application
Download

Technical Feautres:

Power supply

100~240VAC

Output

DC12V

Number of relays

One relay, normally open, normally closed output

Contact capacity

3A/250VAC

Impulse level

Low level: High level

Trigger mode

Low level effective (NPN effective)

Operating temperature

0~+40℃

Measuring Frequency

2~10KHz

Dimensions

48*48*64mm

Hole Size

48*48mm
